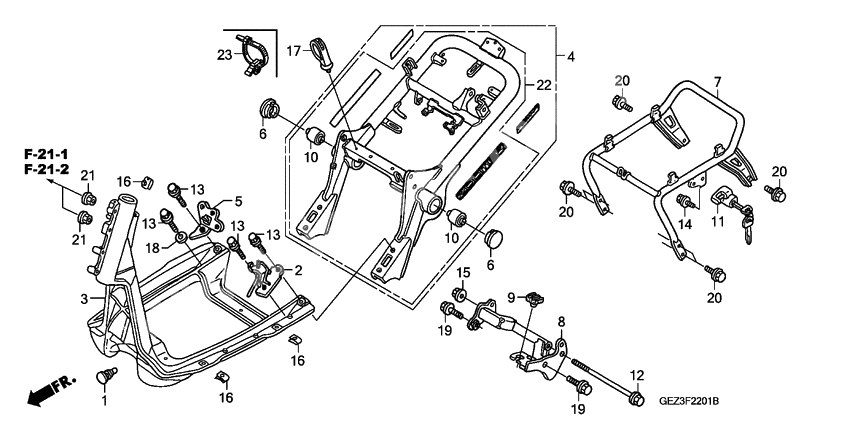

Frame body NPS505/6/8/9
Frame body NPS505/6/8/9
Rubber, tank stopper (Ref #1)
1
Part #17502-GAA-000
Guide (Ref #2)
2
Part #43461-GGA-000
Frame, fr. (Ref #3)
3
Part #50110-GEE-050
STAY (Ref #5)
5
Part #50150-GEV-760
Cap (33mm) *nh1* (Ref #6)
6
Part #50169-KW3-000ZB
Cap (33mm) *nh1* (Ref #6)
6
Part #50169-KW3-000ZB
Cap (33mm) *nh1* (Ref #6)
6
Part #50169-KW3-000ZB
Cap (33mm) *nh1* (Ref #6)
6
Part #50169-KW3-000ZB
Seat rail comp. *nha86m* (Ref #7)
7
Part #50200-GEZ-000ZS
Звено (Ref #8)
8
Part #50351-GEV-760
Rubber, link stopper (Ref #9)
9
Part #50352-GW0-730
Bush, eng hgr rub (Ref #10)
10
Part #50356-KBN-900
Bush, eng hgr rub (Ref #10)
10
Part #50356-KBN-900
Bush, eng hgr rub (Ref #10)
10
Part #50356-KBN-900
Bush, eng hgr rub (Ref #10)
10
Part #50356-KBN-900
Holder assy., helmet (Ref #11)
11
Part #50710-GEZ-003
Bolt, flg (10x230) (Ref #12)
12
Part #90101-GET-000
BOLT (Ref #14)
14
Part #90107-449-000
Nut, u, 10mm (Ref #15)
15
Part #90304-GE8-003
Шайба (Ref #18)
18
Part #94101-10800
Болт (Ref #19)
19
Part #95801-1005000
Болт (Ref #19)
19
Part #95801-1005000
Болт (Ref #19)
19
Part #95801-1005000
Болт (Ref #19)
19
Part #95801-1005000
Гайка (Ref #21)
21
Part #94050-06000
Гайка (Ref #21)
21
Part #94050-06000
Гайка (Ref #21)
21
Part #94050-06000
Гайка (Ref #21)
21
Part #94050-06000
Корпус (Ref #22)
22
Part #50115-GGA-000ZA
BAND (Ref #23)
23
Part #90649-SC2-003
