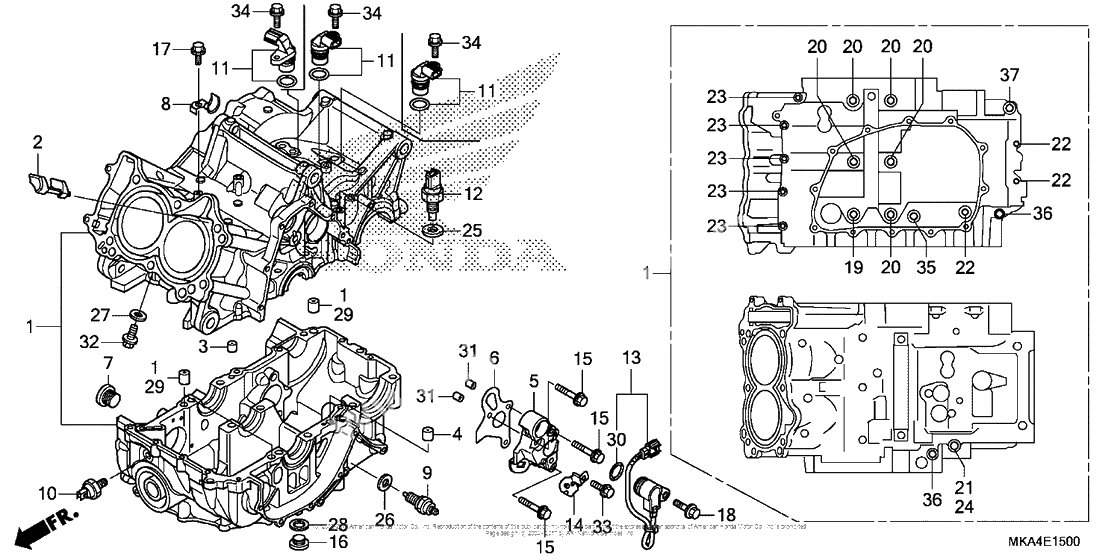

Картер двигателя
Картер двигателя
CRANKCASE SET (Ref #1)
1
Part #11000-MKA-A50
Plate, partition (Ref #2)
2
Part #11103-MGS-D31
Ресивер (Ref #3)
3
Part #11207-MFL-000
Ресивер (Ref #4)
4
Part #11207-MGS-D30
BOLT (Ref #7)
7
Part #12208-PR3-000
Stay, fuel hose (Ref #8)
8
Part #17640-MGS-D30
Переключатель нейтральный (Ref #9)
9
Part #35600-MFJ-D01
ДАТЧИК ДАВЛЕНИЯ МАСЛА (Ref #10)
10
Part #37241-RNA-A01
Sensor assy., speed (Ref #11)
11
Part #37700-K48-A01
Датчик (Ref #12)
12
Part #37750-KPH-701
Bolt, sealing (12x8) (Ref #16)
16
Part #90002-RGA-000
Болт (Ref #17)
17
Part #90004-MGS-D30
Болт (Ref #19)
19
Part #90015-MGS-D31
Болт (Ref #20)
20
Part #90016-MFA-D01
Болт (Ref #21)
21
Part #90021-MGS-D30
Bolt, special (6x45) (Ref #22)
22
Part #90021-MJL-D30
Bolt, special (6x32) (Ref #23)
23
Part #90022-MJL-D30
Шайба (Ref #24)
24
Part #90442-028-000
Шайба (Ref #25)
25
Part #90443-MB0-000
Washer, neutral (Ref #26)
26
Part #90443-MJ6-000
Шайба (Ref #27)
27
Part #90463-ML7-000
Шайба (Ref #28)
28
Part #90545-KF0-000
Установочный штифт (Ref #29)
29
Part #90701-MV9-670
BOLT (Ref #32)
32
Part #95701-060-120-0
Bolt, flange, 6x18 (Ref #34)
34
Part #95701-0601800
BOLT (Ref #35)
35
Part #95701-080-450-0
Bolt, flange, 8x70 (Ref #36)
36
Part #95701-0807000
Bolt, flange, 10x70 (Ref #37)
37
Part #95701-1007000
