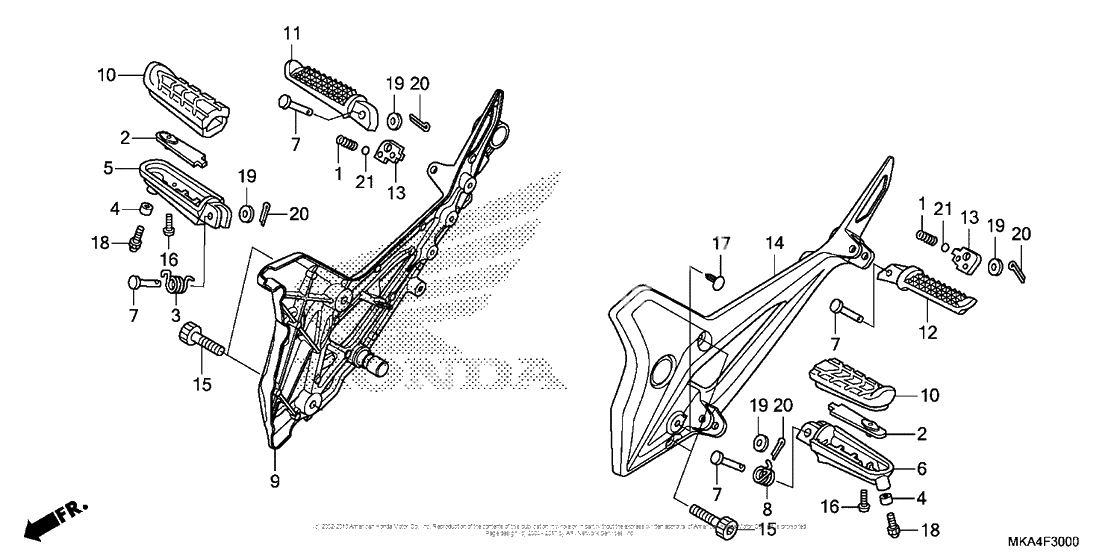

Подножки
Подножки
Пружина (Ref #1)
1
Part #28333-300-000
Plate, step setting (Ref #2)
2
Part #50609-MBW-000
Spring, r (Ref #3)
3
Part #50617-445-840
Collar (6x6.5) (Ref #4)
4
Part #50631-MGS-D30
Arm, r. main step (Ref #5)
5
Part #50635-MGS-305
Arm, l. main step (Ref #6)
6
Part #50636-MGS-305
Pin, step bar (Ref #7)
7
Part #50639-MFL-D20
Spring, l (Ref #8)
8
Part #50644-445-840
Holder, r. *nh146m* (Ref #9)
9
Part #50650-MGS-D31ZA
Rubber, main step (Ref #10)
10
Part #50661-MJM-305
Arm, r. pillion step (Ref #11)
11
Part #50711-MGS-305
Arm, l. pillion step (Ref #12)
12
Part #50712-MGS-305
Plate,pillion ste (Ref #13)
13
Part #50718-MN8-000
Holder, l. *nh146m* (Ref #14)
14
Part #50750-MGS-D30ZA
Болт (Ref #15)
15
Part #90112-MBR-J10
Bolt, special (5x14) (Ref #16)
16
Part #90118-MBW-000
ПИСТОН (Ref #17)
17
Part #90656-MGH-641
BOLT (Ref #18)
18
Part #92501-06016-0A
Washer, plain, 8mm (Ref #19)
19
Part #94102-08000
PIN (Ref #20)
20
Part #94201-20150
Ball (Ref #21)
21
Part #96211-08000
