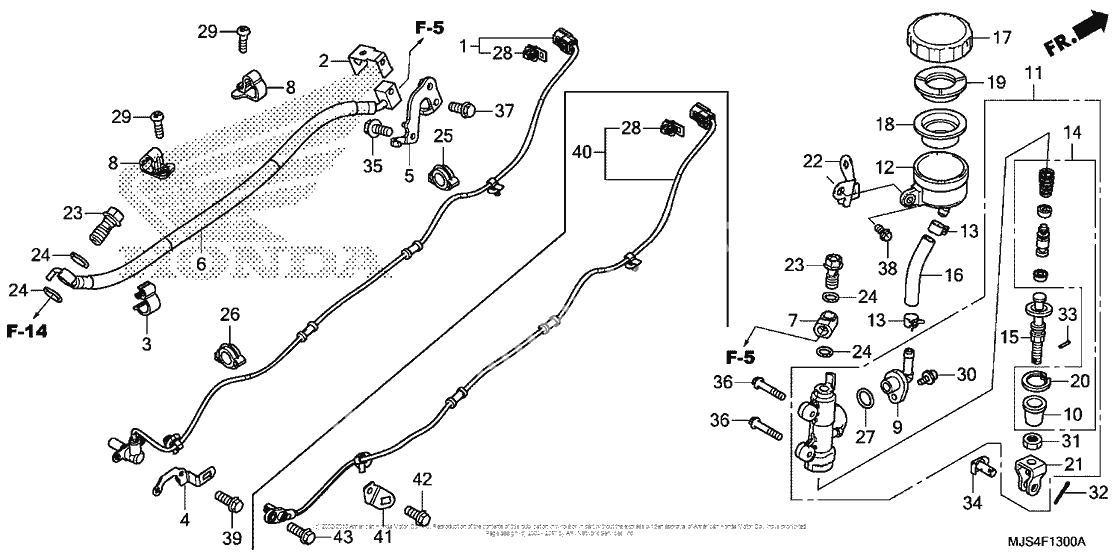

Задний тормозной цилиндр
Задний тормозной цилиндр
New Genuine Part (Ref #1)
1
Part #38510-MJS-J71
New Genuine Part (Ref #2)
2
Part #38515-MJS-J70
Clamp, abs wire (12) (Ref #3)
3
Part #38517-MGE-003
Stay, speed sensor (Ref #4)
4
Part #38555-MGS-D80
New Genuine Part (Ref #5)
5
Part #43160-MJS-J70
New Genuine Part (Ref #6)
6
Part #43312-MJS-J71
Joint, brake pipe (Ref #7)
7
Part #43323-MFL-D01
New Genuine Part (Ref #8)
8
Part #43468-MJL-D70
Коннектор (Ref #9)
9
Part #43503-MER-D01
Ботинок (Ref #10)
10
Part #43504-MB2-006
New Genuine Part (Ref #11)
11
Part #43510-MJS-305
Cup, oil (Ref #12)
12
Part #43511-MR7-016
CLAMP (Ref #13)
13
Part #43514-KS6-701
Piston set, master c (Ref #14)
14
Part #43520-MJ6-315
Штанга (Ref #15)
15
Part #43530-MV9-006
HOSE (Ref #16)
16
Part #45512-MW0-006
Колпак (Ref #17)
17
Part #45513-MEL-D21
DIAPHRAGM (Ref #18)
18
Part #45520-300-000
Пластина (Ref #19)
19
Part #45521-MJ6-006
Circlip (Ref #20)
20
Part #46182-MEL-D21
Joint, brake rod (Ref #21)
21
Part #46504-MAH-671
New Genuine Part (Ref #22)
22
Part #46505-MJS-J70
Bolt, oil (10x22) (Ref #23)
23
Part #90145-MS9-612
Шайба (Ref #24)
24
Part #90545-300-000
Clip, cable (14mm) (Ref #25)
25
Part #90690-MCA-003
Clip, cable (13mm) (Ref #26)
26
Part #90690-MJF-C11
Прокладка (Ref #27)
27
Part #91212-422-006
CLIP (Ref #28)
28
Part #91535-TA0-003
Болт (Ref #29)
29
Part #93500-050-160-G
Screw-washer (Ref #30)
30
Part #93893-040-120-7
Гайка (Ref #31)
31
Part #94002-080-000-S
PIN (Ref #32)
32
Part #94201-20150
PIN (Ref #33)
33
Part #94305-20102
Pin d, joint (Ref #34)
34
Part #9501554000
BOLT (Ref #35)
35
Part #95701-060-140-0
Bolt, flange, 6x35 (Ref #36)
36
Part #95801-0603500
BOLT (Ref #37)
37
Part #96001-060-140-0
Bolt, flange, 6x14 (Ref #38)
38
Part #96001-0601407
BOLT (Ref #39)
39
Part #96001-060-160-0
