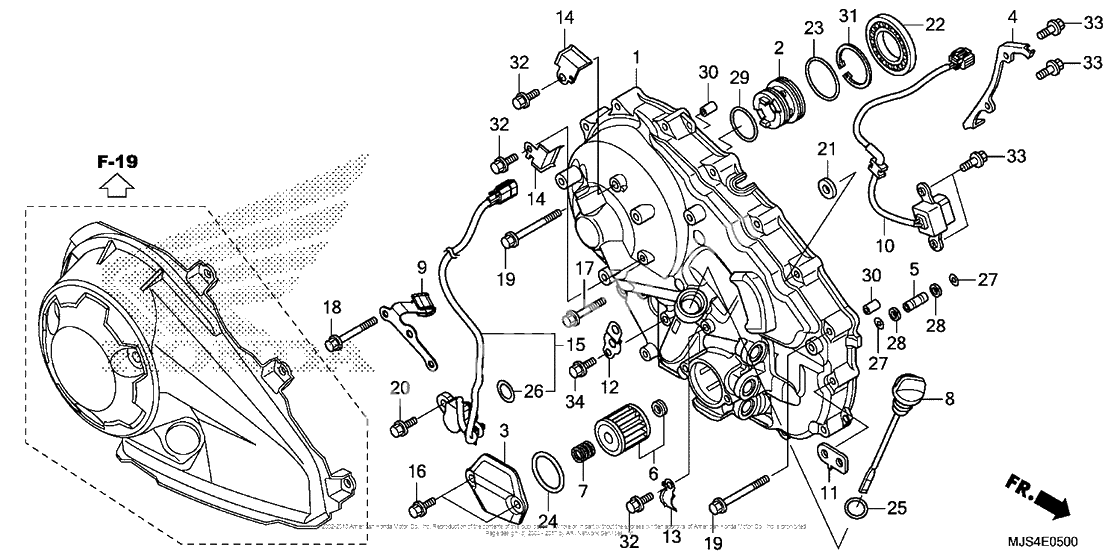

Правая крышка картера
Правая крышка картера
New Genuine Part (Ref #1)
1
Part #11330-MJS-J20
Collar, oil guide (Ref #2)
2
Part #11332-MGS-D20
Cover, oil filter (Ref #3)
3
Part #11337-MGS-D20
Clamp, solenoid cord (Ref #4)
4
Part #11339-MGS-D20
Pipe, oil passage (Ref #5)
5
Part #15104-MGS-D20
Фильтр масляный (Ref #6)
6
Part #15412-MGS-D21
Spring, oil filter (Ref #7)
7
Part #15414-MEB-670
Dipstick, oil (Ref #8)
8
Part #15650-MGS-D20
New Genuine Part (Ref #9)
9
Part #22821-MJS-J20
New Genuine Part (Ref #10)
10
Part #30300-MJS-J22
Stay, harness clip (Ref #11)
11
Part #32157-MFJ-D00
Stay, harness clip (Ref #12)
12
Part #32171-MGS-D20
Stay, harness (Ref #13)
13
Part #32172-MGS-D70
Stay, harness (Ref #14)
14
Part #32173-MGS-D70
New Genuine Part (Ref #15)
15
Part #38810-MJS-J21
Болт (Ref #16)
16
Part #90006-GHB-630
Болт (Ref #17)
17
Part #90006-GHB-680
Болт (Ref #18)
18
Part #90006-GHB-710
Болт (Ref #19)
19
Part #90006-GHB-730
Bolt, knock (6mm) (Ref #20)
20
Part #90011-MGE-D00
Шайба (Ref #21)
21
Part #90488-425-000
Bearing (40x68x7.5) (Ref #22)
22
Part #91029-MGS-D21
Прокладка (Ref #23)
23
Part #91302-MGS-D20
Прокладка (Ref #24)
24
Part #91302-PA9-003
Прокладка (Ref #25)
25
Part #91307-035-000
Прокладка (Ref #26)
26
Part #91310-MGE-D01
Прокладка (Ref #27)
27
Part #91311-RFH-003
Ring, back-up (8x11) (Ref #28)
28
Part #91315-MGS-D20
Прокладка (Ref #29)
29
Part #91344-PC9-004
Dowel pin, 8x20 (Ref #30)
30
Part #9430108200
Circlip (inner) (40) (Ref #31)
31
Part #94520-40150
BOLT (Ref #32)
32
Part #95701-060-140-0
BOLT (Ref #33)
33
Part #95701-060-160-0
BOLT (Ref #34)
34
Part #96001-060-140-0
