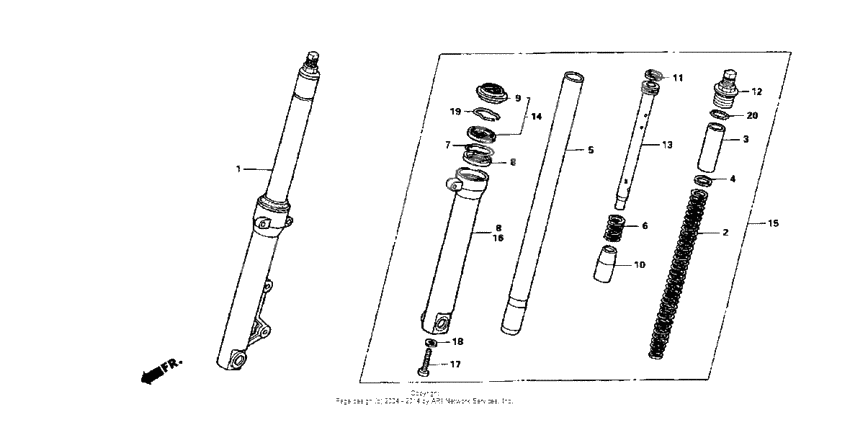

Front fork
Front fork
Fork assy., r. fr. (Ref #1)
1
Part #51400-NLA-003
Spring (k=0) (.55) (Ref #2)
2
Part #51402-NLA-003
Spring (k=0) (.5) (Ref #2)
2
Part #51401-NLA-003
Collar, spring (Ref #3)
3
Part #51402-GT4-971
Plate, spring joint (Ref #4)
4
Part #51403-KW6-961
Pipe, fr. fork (Ref #5)
5
Part #51410-GT4-971
Пружина (Ref #6)
6
Part #51412-GC4-003
Ring, back-up (Ref #7)
7
Part #51412-NLA-003
Slider, r. fr. fork (Ref #8)
8
Part #51420-GT4-003ZB
Slider, r. fr. fork (Ref #8)
8
Part #51420-GT4-003ZB
Slider, r. fr. fork (Ref #8)
8
Part #51420-GT4-003ZB
Slider, r. fr. fork (Ref #8)
8
Part #51420-GT4-003ZB
DUST SEAL (Ref #9)
9
Part #51425-961-013
Piece, oil lock (Ref #10)
10
Part #51432-GF5-731
Кольцо поршневое (Ref #11)
11
Part #51437-GS3-003
Bolt, fork (Ref #12)
12
Part #51450-NLA-003
Pipe, seat (Ref #13)
13
Part #51470-NLA-003
Seal set, fr. fork (Ref #14)
14
Part #51490-GS9-305
Fork assy., l. fr. (Ref #15)
15
Part #51500-NLA-003
Slider, l. fr. fork (Ref #16)
16
Part #51520-GT4-003ZB
Bolt, socket (8mm) (Ref #17)
17
Part #90116-383-721
Шайба (Ref #18)
18
Part #90544-283-000
RING (Ref #19)
19
Part #90601-GF5-731
O-ring, 23x2.8 (Ref #20)
20
Part #9460850000
