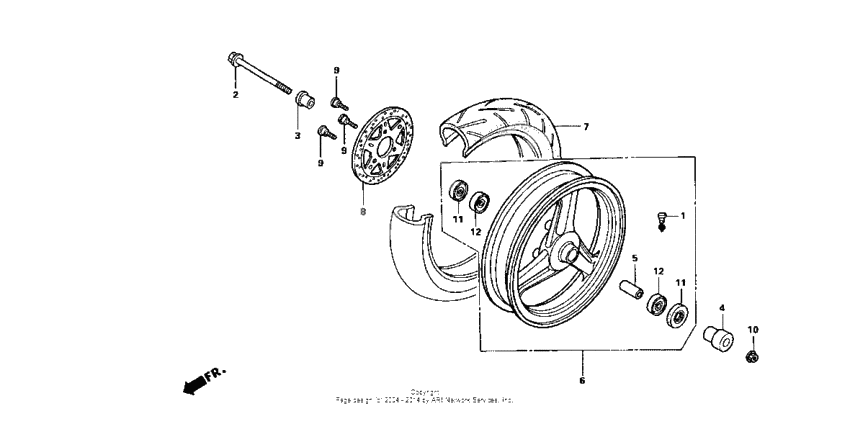

Front wheel
Front wheel
Клапан, обод колеса (Ref #1)
1
Part #42753-ML7-004
Axle, fr. wheel (Ref #2)
2
Part #44301-KR1-600
Colr, fr. wheel side (Ref #3)
3
Part #44311-GS9-000
Collar, l. fr. (Ref #4)
4
Part #44312-NLA-000
Collar, fr (Ref #5)
5
Part #44620-GC8-000
Wheel sub-assy., fr. (Ref #6)
6
Part #44650-NLA-000
Tire assy., fr. (not available (Ref #7)
7
Part #44710-NLA-000
Disk, fr. brake (Ref #8)
8
Part #45121-GT4-710
Nut, flange, 12mm (Ref #10)
10
Part #90306-KF0-003
Dust seal (20x32x5) (Ref #11)
11
Part #90754-GC8-005
Dust seal (20x32x5) (Ref #11)
11
Part #90754-GC8-005
Dust seal (20x32x5) (Ref #11)
11
Part #90754-GC8-005
Dust seal (20x32x5) (Ref #11)
11
Part #90754-GC8-005
Bearing, radial ball, 6201uu (Ref #12)
12
Part #96150-6201010
Bearing, radial ball, 6201uu (Ref #12)
12
Part #96150-6201010
Bearing, radial ball, 6201uu (Ref #12)
12
Part #96150-6201010
Bearing, radial ball, 6201uu (Ref #12)
12
Part #96150-6201010
