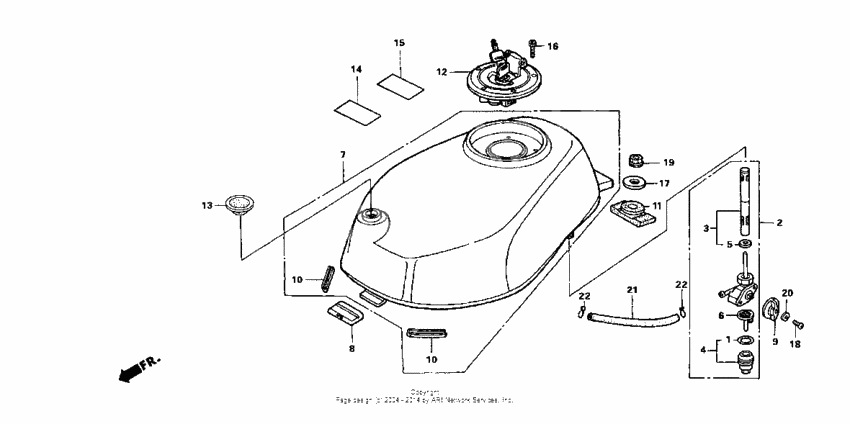

Fuel tank
Fuel tank
Packing, fuel strainer cup (Ref #1)
1
Part #16173-001-004
Petcock assy. (Ref #2)
2
Part #16950-GT4-710
Screen set (Ref #3)
3
Part #16952-GT4-305
Cup set (Ref #4)
4
Part #16953-GT4-305
O-ring, 9.0x1.3 (Ref #5)
5
Part #16958-397-771
Filter, cup (Ref #6)
6
Part #16959-471-831
Tank, fuel (Ref #7)
7
Part #17510-GT4-711
Резина (Ref #8)
8
Part #17512-GS9-000
Lever, fuel petcock (Ref #9)
9
Part #17512-GT4-710
Rubber, protector (Ref #10)
10
Part #17521-HA7-670
Rubber, protector (Ref #10)
10
Part #17521-HA7-670
Rubber, protector (Ref #10)
10
Part #17521-HA7-670
Rubber, protector (Ref #10)
10
Part #17521-HA7-670
Валик (Ref #11)
11
Part #17613-168-000
Cap, fuel filler (Ref #12)
12
Part #17620-GT4-691
Grommet a, side cover (Ref #13)
13
Part #19902-865-780
Mark, caution (Ref #14)
14
Part #87208-NC2-000
Label, caution (Ref #15)
15
Part #87560-357-671
Bolt, socket (4x23) (Ref #16)
16
Part #90074-ML7-920
Washer, 8mm (Ref #17)
17
Part #90501-819-000
Болт (Ref #18)
18
Part #93500-040-080-G
Гайка (Ref #19)
19
Part #94050-08000
Шайба (Ref #20)
20
Part #9411104700
Bulk hose (4.5x3000) (Ref #21)
21
Part #95001-450-0360M
CLIP (Ref #22)
22
Part #95002-02080
CLIP (Ref #22)
22
Part #95002-02080
CLIP (Ref #22)
22
Part #95002-02080
CLIP (Ref #22)
22
Part #95002-02080
