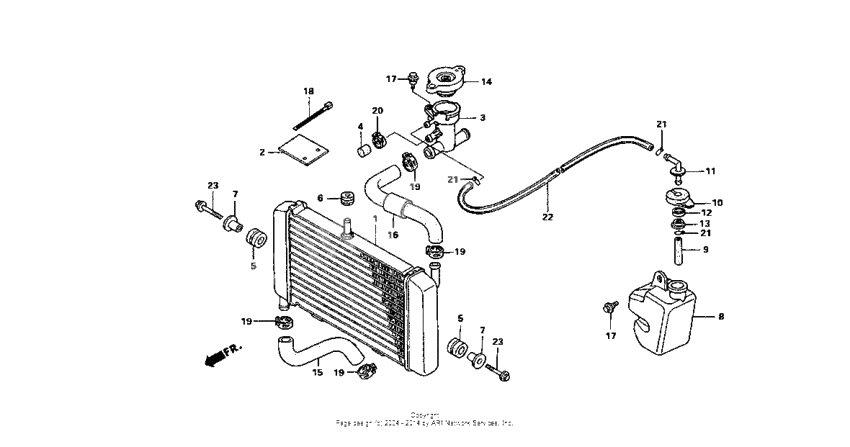

Radiator
Radiator
Radiator assy. (Ref #1)
1
Part #19010-NLA-003
Plate, radiator (Ref #2)
2
Part #19015-NLA-000
Neck, filler (Ref #3)
3
Part #19039-KV7-671
Cap, filler neck (Ref #4)
4
Part #19042-GT4-000
RUBBER (Ref #5)
5
Part #19051-KA3-710
RUBBER (Ref #5)
5
Part #19051-KA3-710
RUBBER (Ref #5)
5
Part #19051-KA3-710
RUBBER (Ref #5)
5
Part #19051-KA3-710
RUBBER (Ref #6)
6
Part #19051-MN0-000
COLLAR (Ref #7)
7
Part #19052-KA3-710
COLLAR (Ref #7)
7
Part #19052-KA3-710
COLLAR (Ref #7)
7
Part #19052-KA3-710
COLLAR (Ref #7)
7
Part #19052-KA3-710
Tank, reserve (Ref #8)
8
Part #19101-GJ1-000
HOSE (Ref #9)
9
Part #19103-680-000
Cap, reserve tank (Ref #10)
10
Part #19104-GT4-000
Adapter, reserve cap (Ref #11)
11
Part #19106-GE2-000
STOPPER (Ref #12)
12
Part #19107-GE2-000
Stopper a (Ref #13)
13
Part #19108-GJ1-000
Cap, radiator filler (Ref #14)
14
Part #19111-KE1-013
Hose c, water (Ref #15)
15
Part #19503-NLA-000
Hose d, water (Ref #16)
16
Part #19504-NLA-000
BOLT (Ref #17)
17
Part #90111-162-000
BOLT (Ref #17)
17
Part #90111-162-000
BOLT (Ref #17)
17
Part #90111-162-000
BOLT (Ref #17)
17
Part #90111-162-000
Ty-lap (2.4x92) (Ref #18)
18
Part #90652-ND5-000
CLAMP (Ref #20)
20
Part #95002-412-000-4
Bulk hose, vinyl (Ref #22)
22
Part #95003-190-0810M
Bolt, flange, 6x25 (Ref #23)
23
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #23)
23
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #23)
23
Part #95701-060-250-7
Bolt, flange, 6x25 (Ref #23)
23
Part #95701-060-250-7
