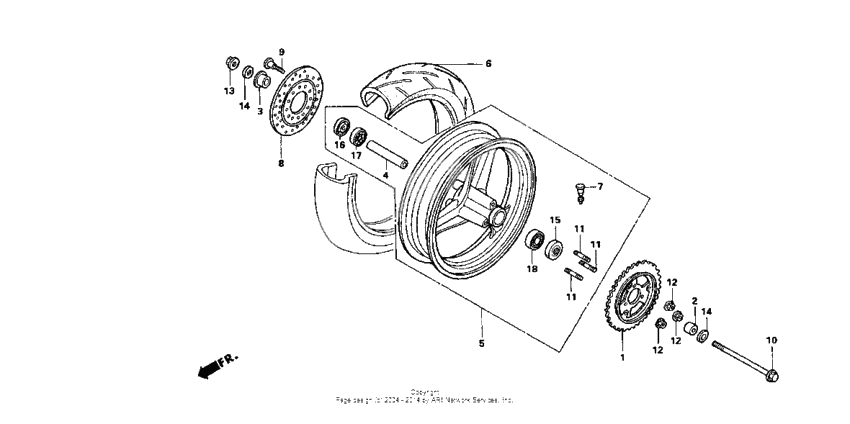

Rear wheel
Rear wheel
Звездочка (Ref #1)
1
Part #41200-GT4-690
Colr, rr. wheel side (Ref #2)
2
Part #42311-GS9-000
Collar, rr. axle (Ref #3)
3
Part #42311-GT4-000
Collar, rr. (Ref #4)
4
Part #42620-GS3-000
Wheel sub-assy., rr. (Ref #5)
5
Part #42650-NLA-000
Клапан, обод колеса (Ref #7)
7
Part #42753-ML7-004
Disk, rr. brake (Ref #8)
8
Part #43121-GT4-710
Disk, rr. brake (Ref #8)
8
Part #43121-GT4-710
Disk, rr. brake (Ref #8)
8
Part #43121-GT4-710
Disk, rr. brake (Ref #8)
8
Part #43121-GT4-710
Bolt, fr. (8x24) (Ref #9)
9
Part #90105-KR3-000
Bolt, rr (Ref #10)
10
Part #90121-KE2-980
Nut, flange, 12mm (Ref #13)
13
Part #90306-KF0-003
Шайба (Ref #14)
14
Part #90440-GT4-970
Шайба (Ref #14)
14
Part #90440-GT4-970
Шайба (Ref #14)
14
Part #90440-GT4-970
Шайба (Ref #14)
14
Part #90440-GT4-970
Oil seal (26x37x6) (Ref #15)
15
Part #90753-051-003
Dust seal (20x32x5) (Ref #16)
16
Part #90754-GC8-005
Bearing, radial ball, 6201uu (Ref #17)
17
Part #96150-6201010
Bearing (6301uu) (Ref #18)
18
Part #96150-6301010
