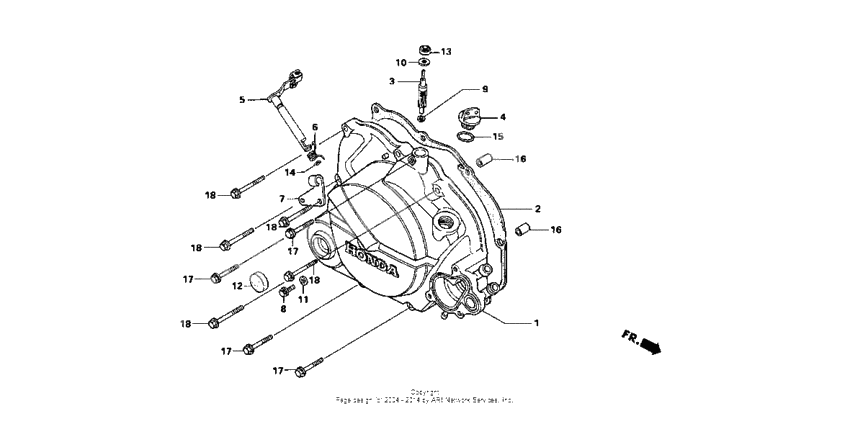

Right crankcase cover
Right crankcase cover
Cover, r. crankcase (Ref #1)
1
Part #11331-GT4-970
Прокладка (Ref #2)
2
Part #11393-GAA-000
Шестерня тахометра (Ref #3)
3
Part #12431-166-000
Cap, oil filler (Ref #4)
4
Part #15611-NF4-900
Рукоятка муфты (Ref #5)
5
Part #22810-166-000
Spring, clutch lever (Ref #6)
6
Part #22815-GT5-000
Receiver (Ref #7)
7
Part #22821-GT4-970
Bolt, drain (6x10) (Ref #8)
8
Part #90134-NX5-000
Washer a, tachometer (Ref #9)
9
Part #90444-611-920
Шайба (Ref #10)
10
Part #90458-324-010
Washer, sealing, 12mm (Ref #11)
11
Part #90463-KRM-840
Plug, sealing, 28 (arai) (Ref #12)
12
Part #90871-733-003
Сальник (Ref #13)
13
Part #91201-324-023
Прокладка (Ref #14)
14
Part #91302-GE0-000
Прокладка (Ref #14)
14
Part #91308-PH9-000
O-ring, 16mm (Ref #15)
15
Part #91303-800-000
Dowel pin (Ref #16)
16
Part #94301-08140
Dowel pin (Ref #16)
16
Part #94301-08140
Dowel pin (Ref #16)
16
Part #94301-08140
Dowel pin (Ref #16)
16
Part #94301-08140
-
-
Цена: 280.00 р.
Доступно: 2
-
