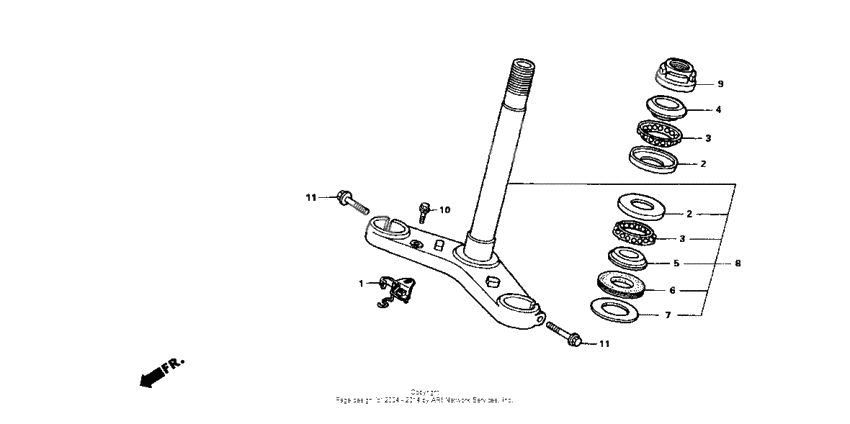

Steering stem
Steering stem
Clip, brake hose (Ref #1)
1
Part #45127-GAA-010
Race (Ref #2)
2
Part #50301-041-010
Race (Ref #2)
2
Part #50301-041-010
Race (Ref #2)
2
Part #50301-041-010
Race (Ref #2)
2
Part #50301-041-010
Ball, steering steel (Ref #3)
3
Part #53210-GS9-003
Ball, steering steel (Ref #3)
3
Part #53210-GS9-003
Ball, steering steel (Ref #3)
3
Part #53210-GS9-003
Ball, steering steel (Ref #3)
3
Part #53210-GS9-003
Race, steering cone (Ref #4)
4
Part #53211-028-010
Race, steering cone (Ref #5)
5
Part #53212-030-010
DUST SEAL (Ref #6)
6
Part #53214-001-010
Шайба (Ref #7)
7
Part #53215-001-000
Stem sub-assy., strg (Ref #8)
8
Part #53219-GT4-J00
Thread (Ref #9)
9
Part #53220-074-000
BOLT (Ref #10)
10
Part #95701-060-120-7
Болт (Ref #11)
11
Part #96300-0803207
Болт (Ref #11)
11
Part #96300-0803207
Болт (Ref #11)
11
Part #96300-0803207
Болт (Ref #11)
11
Part #96300-0803207
