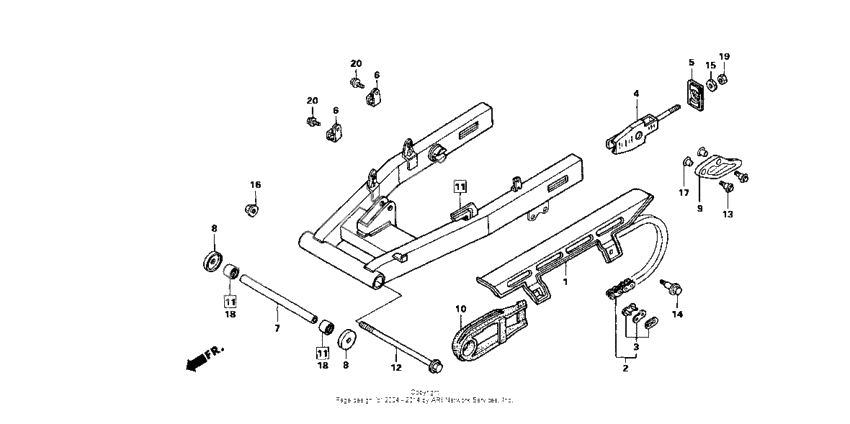

Swingarm + chain case
Swingarm + chain case
Case, drive chain (Ref #1)
1
Part #40510-GT4-020
Цепь (Ref #2)
2
Part #40530-GT4-972
Цепь (Ref #2)
2
Part #40530-166-611
Master link (Ref #3)
3
Part #40531-098-003
Adjuster comp,cha (Ref #4)
4
Part #40543-GEY-910
Cap, swingarm end (Ref #5)
5
Part #40546-GS3-000
Clamp, brake hose (Ref #6)
6
Part #52115-GT4-970
Clamp, brake hose (Ref #6)
6
Part #52115-GT4-970
Clamp, brake hose (Ref #6)
6
Part #52115-GT4-970
Clamp, brake hose (Ref #6)
6
Part #52115-GT4-970
Colr, swingarm pivot (Ref #7)
7
Part #52141-GT4-970
Dust seal (31x41) (Ref #8)
8
Part #52144-GT4-971
Dust seal (31x41) (Ref #8)
8
Part #52144-GT4-971
Dust seal (31x41) (Ref #8)
8
Part #52144-GT4-971
Dust seal (31x41) (Ref #8)
8
Part #52144-GT4-971
Guard, chain (Ref #9)
9
Part #52156-GAN-670
Slider, chain (Ref #10)
10
Part #52171-GS9-000
Bolt, flg (12x252) (Ref #12)
12
Part #90103-GT4-000
Болт (Ref #13)
13
Part #90110-GE0-710
BOLT (Ref #14)
14
Part #90111-187-000
Nut, special, 6mm (Ref #15)
15
Part #90302-KBP-900
Nut, flange, 12mm (Ref #16)
16
Part #90306-KF0-003
Washer, chain case setting (Ref #17)
17
Part #90522-028-000
Bearing (20x26x20) (Ref #18)
18
Part #91070-GC4-601
Bearing (20x26x20) (Ref #18)
18
Part #91070-GC4-601
Bearing (20x26x20) (Ref #18)
18
Part #91070-GC4-601
Bearing (20x26x20) (Ref #18)
18
Part #91070-GC4-601
Гайка (Ref #19)
19
Part #94001-062-000-S
BOLT (Ref #20)
20
Part #96001-060-120-7
BOLT (Ref #20)
20
Part #96001-060-120-7
BOLT (Ref #20)
20
Part #96001-060-120-7
BOLT (Ref #20)
20
Part #96001-060-120-7
