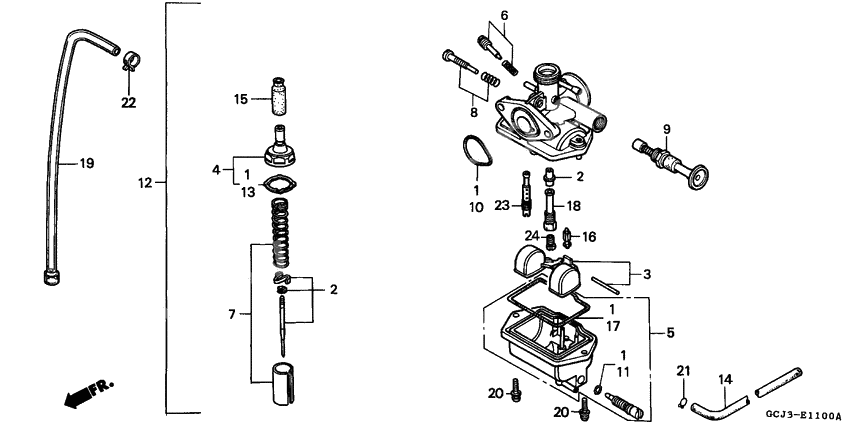

Carburetor assy
Carburetor assy
NEEDLE SET,JET (Ref #2)
2
Part #16012-GCJ-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GCJ-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GCJ-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GCJ-900
FLOAT SET (Ref #3)
3
Part #16013-166-014
Top set (Ref #4)
4
Part #16014-GC5-611
Chamber set,float (Ref #5)
5
Part #16015-GCJ-900
Screw set (Ref #6)
6
Part #16016-KW7-930
Valve set,throttl (Ref #7)
7
Part #16022-GCJ-900
Screw set b (Ref #8)
8
Part #16028-166-004
Valve comp,starte (Ref #9)
9
Part #16046-GCJ-900
O RING (Ref #10)
10
Part #16075-GHB-B60
Прокладка (Ref #11)
11
Part #16075-GHB-640
Карбюратор (Ref #12)
12
Part #16100-GCJ-900
GASKET,TOP (Ref #13)
13
Part #16110-GJ1-861
Tube, fuel (Ref #14)
14
Part #16199-MN5-405
Крышка уплотнения (Ref #15)
15
Part #16148-KB1-921
Valve comp., float (Ref #16)
16
Part #16155-883-005
Gasket,float cham (Ref #17)
17
Part #16163-GCJ-900
Держатель жиклера (Ref #18)
18
Part #16165-GE2-920
Трубка масляного бака (Ref #19)
19
Part #17504-147-010
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Болт (Ref #20)
20
Part #93500-040-160-H
Clip, tube (b6.5) (Ref #21)
21
Part #9500202659
CLAMP (Ref #22)
22
Part #95002-408-000-8
Jet,slow,#40 (Ref #23)
23
Part #99103-168-0400
Jet, main (#100) (Ref #24)
24
Part #99101-GHB1000
