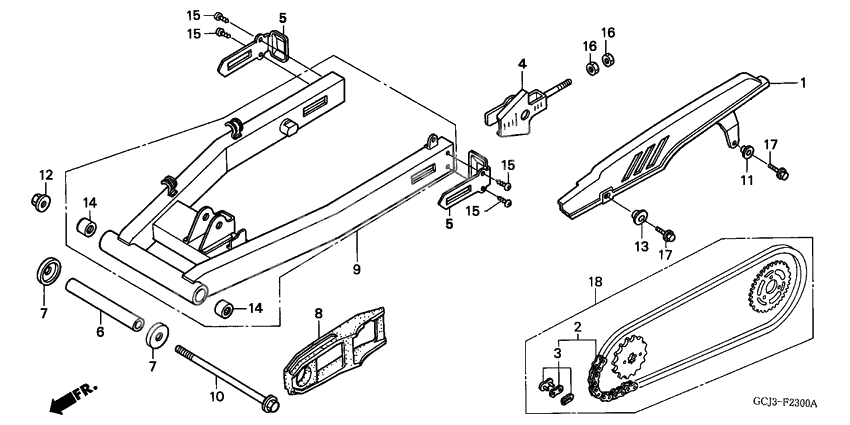

Swingarm/chain case
Swingarm/chain case
Case drive chain (Ref #1)
1
Part #40510-GAS-900
Цепь (Ref #2)
2
Part #40530-GCJ-900
Joint,drive chain (Ref #3)
3
Part #40531-GAS-900
Adjuster chain (Ref #4)
4
Part #40543-GAS-900
Cap rear fork end (Ref #5)
5
Part #40546-GE3-760
Cap rear fork end (Ref #5)
5
Part #40546-GE3-760
Cap rear fork end (Ref #5)
5
Part #40546-GE3-760
Cap rear fork end (Ref #5)
5
Part #40546-GE3-760
Collar,rr.fork(ce (Ref #6)
6
Part #52141-GW6-000
CAP (Ref #7)
7
Part #52144-GE2-005
CAP (Ref #7)
7
Part #52144-GE2-005
CAP (Ref #7)
7
Part #52144-GE2-005
CAP (Ref #7)
7
Part #52144-GE2-005
Slider chain (Ref #8)
8
Part #52170-GAS-900
Swingarm *nh146m* (Ref #9)
9
Part #52200-GAS-305ZA
Bolt,swing arm pi (Ref #10)
10
Part #90121-GAA-000
Collar,reflector (Ref #11)
11
Part #90129-MA1-740
Nut, u (14mm) (Ref #12)
12
Part #90305-GE8-003
Washer, 6x9 (Ref #13)
13
Part #90513-405-000
Bearing (20x26x20) (Ref #14)
14
Part #91070-GC4-601
Bearing (20x26x20) (Ref #14)
14
Part #91070-GC4-601
Bearing (20x26x20) (Ref #14)
14
Part #91070-GC4-601
Bearing (20x26x20) (Ref #14)
14
Part #91070-GC4-601
Гайка (Ref #16)
16
Part #94001-062-000-S
Гайка (Ref #16)
16
Part #94001-062-000-S
Гайка (Ref #16)
16
Part #94001-062-000-S
Гайка (Ref #16)
16
Part #94001-062-000-S
BOLT (Ref #17)
17
Part #95701-060-120-7
BOLT (Ref #17)
17
Part #95701-060-120-7
BOLT (Ref #17)
17
Part #95701-060-120-7
BOLT (Ref #17)
17
Part #95701-060-120-7
