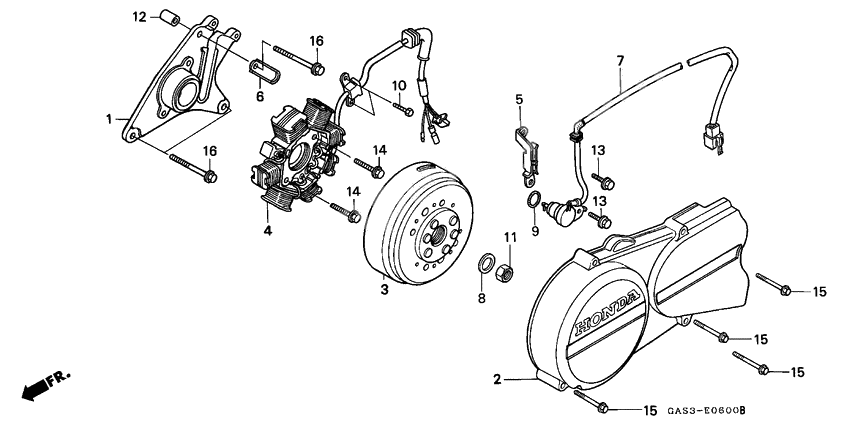

Left crankcase cover/ generator
Left crankcase cover/ generator
Основание (Ref #1)
1
Part #11205-GAS-900
Cover comp. (Ref #2)
2
Part #11340-GE3-832
Flywheel comp (Ref #3)
3
Part #31110-GAS-901
Stator comp (Ref #4)
4
Part #31120-GAS-901
Clamper,code (Ref #5)
5
Part #32192-GAS-900
Guide,code (Ref #6)
6
Part #32193-GAS-900
Sw.assy,change (Ref #7)
7
Part #35759-GAS-901
Шайба (Ref #8)
8
Part #90441-166-000
O-ring, 16.5x2.5 (arai) (Ref #9)
9
Part #91305-KK4-003
Bolt,hex, (Ref #10)
10
Part #93301-050-160-H
Гайка (Ref #11)
11
Part #94001-122-000-S
Dowel pin (Ref #12)
12
Part #94301-08100
BOLT (Ref #13)
13
Part #96001-060-140-0
BOLT (Ref #13)
13
Part #96001-060-140-0
BOLT (Ref #13)
13
Part #96001-060-140-0
BOLT (Ref #13)
13
Part #96001-060-140-0
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
Bolt, flange, 6x22 (Ref #14)
14
Part #96001-0602200
BOLT (Ref #16)
16
Part #96001-060-600-0
BOLT (Ref #16)
16
Part #96001-060-600-0
BOLT (Ref #16)
16
Part #96001-060-600-0
BOLT (Ref #16)
16
Part #96001-060-600-0
