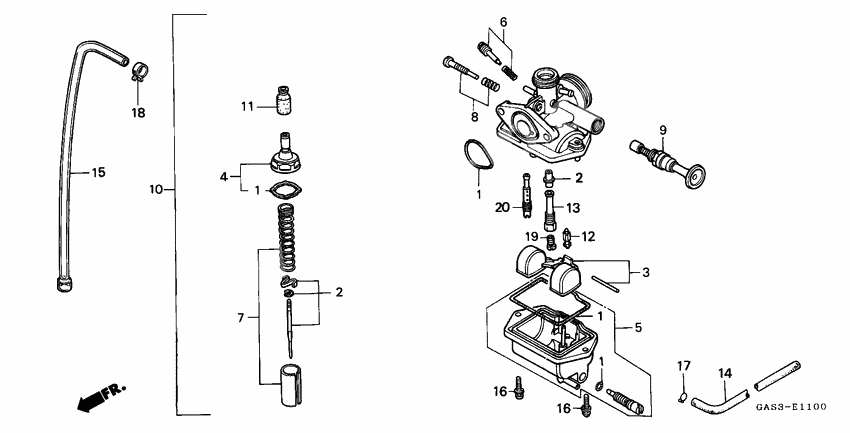

Carburetor assy
Carburetor assy
NEEDLE SET,JET (Ref #2)
2
Part #16012-GAS-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GAS-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GAS-900
NEEDLE SET,JET (Ref #2)
2
Part #16012-GAS-900
FLOAT SET (Ref #3)
3
Part #16013-166-014
Top set (Ref #4)
4
Part #16014-GC5-611
Chamber set, float (Ref #5)
5
Part #16015-166-014
Screw set, a (Ref #6)
6
Part #16016-GB4-003
Valve set,throttl (Ref #7)
7
Part #16022-GAS-900
Screw set b (Ref #8)
8
Part #16028-166-004
Valve comp.,start (Ref #9)
9
Part #16046-166-014
Карбюратор (Ref #10)
10
Part #16100-GAS-900
Крышка уплотнения (Ref #11)
11
Part #16148-KB1-921
Valve comp., float (Ref #12)
12
Part #16155-883-005
Holder, needle jet (Ref #13)
13
Part #16165-GT4-003
Трубка топливная (Ref #14)
14
Part #16199-KG4-405
Трубка масляного бака (Ref #15)
15
Part #17504-147-010
Болт (Ref #16)
16
Part #93500-040-160-H
Болт (Ref #16)
16
Part #93500-040-160-H
Болт (Ref #16)
16
Part #93500-040-160-H
Болт (Ref #16)
16
Part #93500-040-160-H
Clip, tube (b6.5) (Ref #17)
17
Part #9500202650
CLAMP (Ref #18)
18
Part #95002-408-000-8
Jet, main (#115) (Ref #19)
19
Part #99101-MAZ1150
Жиклер (Ref #20)
20
Part #99103-1680420
