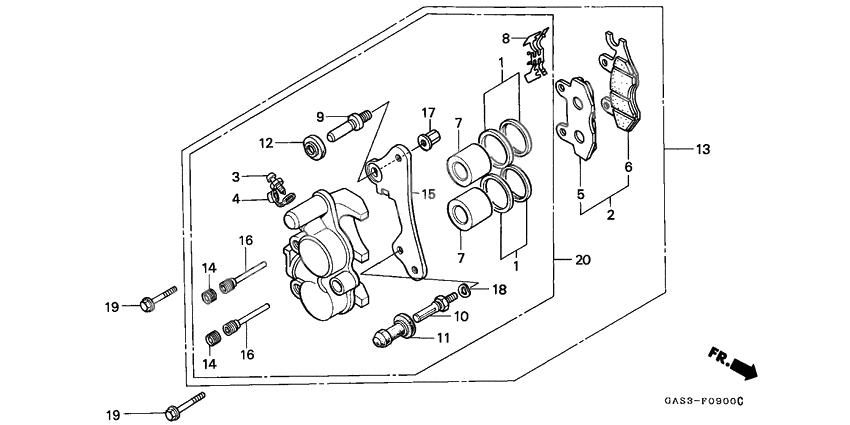

Front brake caliper

Front brake caliper

Front brake caliper
Seal set, piston (Ref #1)
1
Part #06451-GE2-405
Seal set, piston (Ref #1)
1
Part #06451-GE2-405
Seal set, piston (Ref #1)
1
Part #06451-GE2-405
Seal set, piston (Ref #1)
1
Part #06451-GE2-405
Pad set, fr. (Ref #2)
2
Part #06455-KR3-405
Болт (Ref #3)
3
Part #43352-568-003
CAP (Ref #4)
4
Part #43353-461-771
PISTON (Ref #7)
7
Part #45107-MN5-006
PISTON (Ref #7)
7
Part #45107-MN5-006
PISTON (Ref #7)
7
Part #45107-MN5-006
PISTON (Ref #7)
7
Part #45107-MN5-006
Пружина (Ref #8)
8
Part #45108-ML4-006
Pin a, bolt (Ref #9)
9
Part #45131-GE2-006
Bolt, pin (Ref #10)
10
Part #45131-GZ0-006
Bush, pin (Ref #11)
11
Part #45132-166-016
Boot b (Ref #12)
12
Part #45133-MA3-006
Plug, pin (Ref #14)
14
Part #45203-MG3-016
Plug, pin (Ref #14)
14
Part #45203-MG3-016
Plug, pin (Ref #14)
14
Part #45203-MG3-016
Plug, pin (Ref #14)
14
Part #45203-MG3-016
Bracket,fr. (Ref #15)
15
Part #45210-GAS-901
Pin, hanger (Ref #16)
16
Part #45215-KA3-732
Pin, hanger (Ref #16)
16
Part #45215-KA3-732
Pin, hanger (Ref #16)
16
Part #45215-KA3-732
Pin, hanger (Ref #16)
16
Part #45215-KA3-732
Nut, torque (Ref #17)
17
Part #45216-KW6-901
Шайба (Ref #18)
18
Part #45216-166-006
Болт (Ref #19)
19
Part #90131-GAA-000
Болт (Ref #19)
19
Part #90131-GAA-000
Болт (Ref #19)
19
Part #90131-GAA-000
Болт (Ref #19)
19
Part #90131-GAA-000
Caliper sub assy, (Ref #20)
20
Part #45250-GAS-305
+ -
