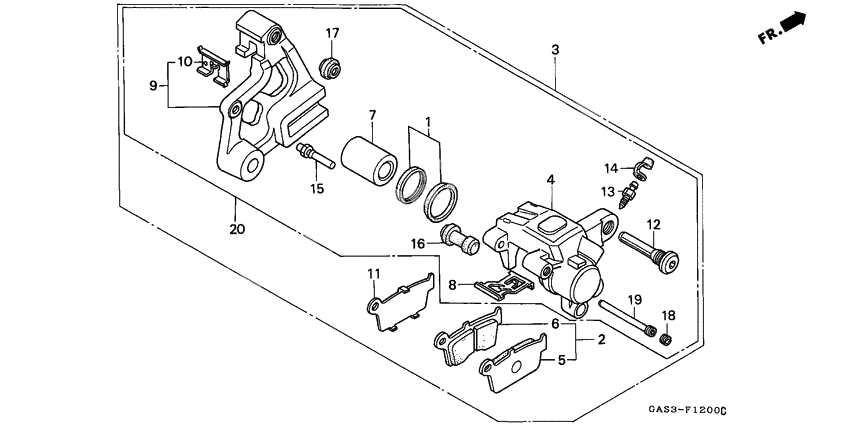

Rear brake caliper

Rear brake caliper

Rear brake caliper
Seal set, piston (Ref #1)
1
Part #06431-MA3-405
Pad set, brake (Ref #2)
2
Part #06435-GT4-405
Caliper assy.,rr. (Ref #3)
3
Part #43100-GAS-901
PISTON (Ref #7)
7
Part #43107-MA3-006
Пружина (Ref #8)
8
Part #43108-MY6-671
Bracket comp.,rr. (Ref #9)
9
Part #43110-GAS-901
RETAINER (Ref #10)
10
Part #43112-GT4-006
Shim b (Ref #11)
11
Part #43114-GAS-901
Bolt, pin (Ref #12)
12
Part #43131-KW3-006
Болт (Ref #13)
13
Part #43352-568-003
CAP (Ref #14)
14
Part #43353-461-771
Pin, bolt (Ref #15)
15
Part #45131-166-016
Bush, pin (Ref #16)
16
Part #45132-166-016
Boot b (Ref #17)
17
Part #45133-MA3-006
Plug, pin (Ref #18)
18
Part #45203-MG3-016
Pin, hanger (Ref #19)
19
Part #45215-KA3-732
Caliper sub assy, (Ref #20)
20
Part #43150-GAS-305
+ -
