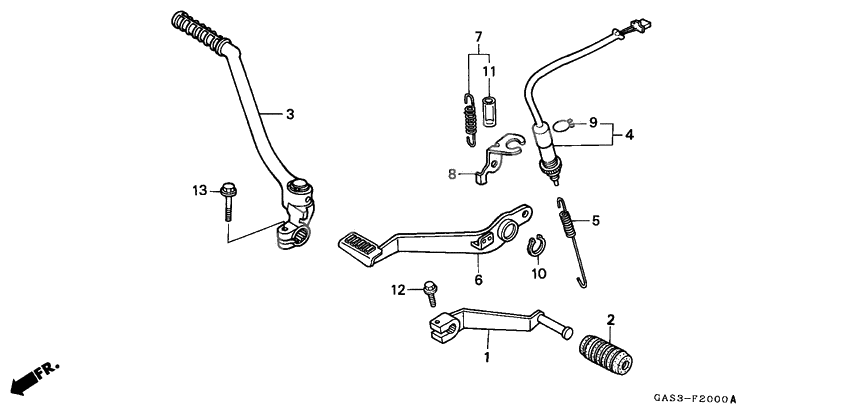

Pedal/kick starter arm
Pedal/kick starter arm
Pedal,gear change (Ref #1)
1
Part #24701-GAA-000
RUBBER (Ref #2)
2
Part #24705-KN8-000
Arm assy.,kick st (Ref #3)
3
Part #28300-GAA-000
Switch, rr. stop (Ref #4)
4
Part #35350-KR0-405
Spring, stop switch (Ref #5)
5
Part #35357-KT8-000
Pedal comp. brake (Ref #6)
6
Part #46500-GAS-900
Spring, brake pedal (Ref #7)
7
Part #46510-GAA-000
Brkt.rr.brk.stop swi (Ref #8)
8
Part #50352-GAS-900
Clip, switch cover (Ref #9)
9
Part #90601-KAF-003
Circlip, external, 15mm (Ref #10)
10
Part #9451115000
*95003-43008-10m (Ref #11)
11
Part #95003-430-032-0
BOLT (Ref #12)
12
Part #95701-060-200-7
Болт (Ref #13)
13
Part #96300-0802507
