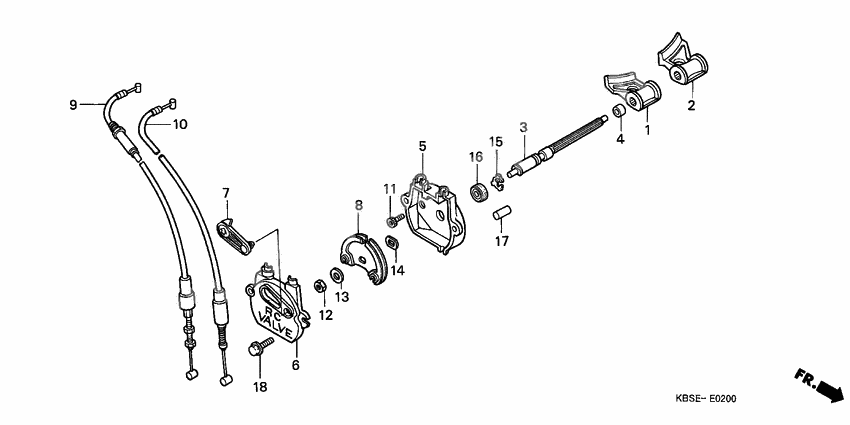

Exhaust valve 1
Exhaust valve 1
Valve r,flep (Ref #1)
1
Part #14201-KY4-901
Valve l,flap (Ref #2)
2
Part #14202-KY4-901
Shaft,flap valve (Ref #3)
3
Part #14211-KY4-900
Collar (6.6) (Ref #4)
4
Part #14231-KV3-000
Base,cable guide (Ref #5)
5
Part #14301-KY4-901
Cap,cable guide (Ref #6)
6
Part #14302-KY4-901
Cap,check window (Ref #7)
7
Part #14303-KY4-900
Plate comp.,,cabl (Ref #8)
8
Part #14321-KY4-900
Cable comp b,valv (Ref #9)
9
Part #14340-KBS-900
Cable comp a,valv (Ref #10)
10
Part #14330-KBS-900
Bolt, socket (6x16) (Ref #11)
11
Part #90036-KY4-900
Nut,control rod (Ref #12)
12
Part #90310-634-980
Шайба (Ref #13)
13
Part #90437-GM0-000
Washer,valve shaf (Ref #14)
14
Part #90555-KV3-000
E ring,special,7m (Ref #15)
15
Part #90601-KV3-000
Сальник (Ref #16)
16
Part #91201-PA9-004
Dowel pin (Ref #17)
17
Part #94303-05080
Bolt, flange, 6x16 (Ref #18)
18
Part #96001-0601607
