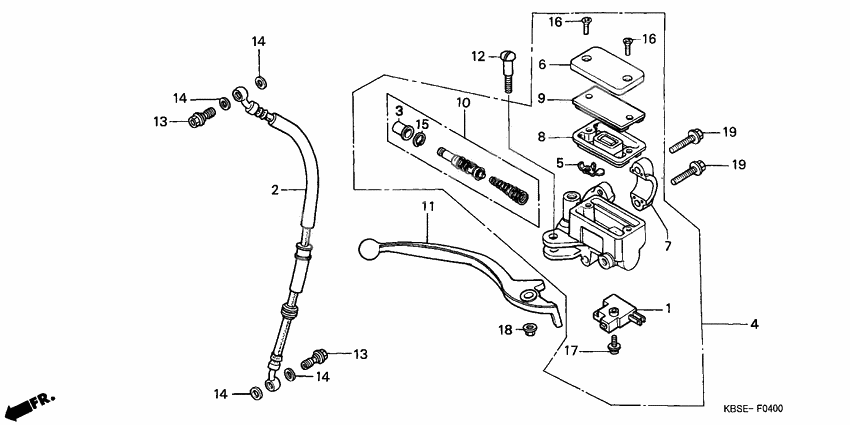

Fr. brake master cylinder
Fr. brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose comp,fr brk (Ref #2)
2
Part #45125-KBS-W51
Ботинок (Ref #3)
3
Part #45504-KB9-960
Sub assy,fr m/c (Ref #4)
4
Part #45510-KBS-315
PROTECTOR (Ref #5)
5
Part #45512-KB9-960
Cap,m/c (Ref #6)
6
Part #45513-KR1-761
Holder,master cyl (Ref #7)
7
Part #45517-KB9-960
DIAPHRAGM (Ref #8)
8
Part #45520-KB9-960
PLATE,DIAPHRAGM (Ref #9)
9
Part #45521-KR1-760
Cylinder set,mast (Ref #10)
10
Part #45530-KB9-960
Lever,r strg.hndl (Ref #11)
11
Part #53175-KBS-900
Bolt,handle lever (Ref #12)
12
Part #90114-KR1-760
Oil bolt,10x22 (Ref #13)
13
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #13)
13
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #13)
13
Part #90145-MY5-H20
Oil bolt,10x22 (Ref #13)
13
Part #90145-MY5-H20
Circlip (Ref #15)
15
Part #90651-KB9-960
Болт (Ref #16)
16
Part #93600-040120G
Болт (Ref #16)
16
Part #93600-040120G
Болт (Ref #16)
16
Part #93600-040120G
Болт (Ref #16)
16
Part #93600-040120G
Screw-washer (Ref #17)
17
Part #93893-040-120-8
Гайка (Ref #18)
18
Part #94050-06000
Болт (Ref #19)
19
Part #96001-0602207
Болт (Ref #19)
19
Part #96001-0602207
Болт (Ref #19)
19
Part #96001-0602207
Болт (Ref #19)
19
Part #96001-0602207
