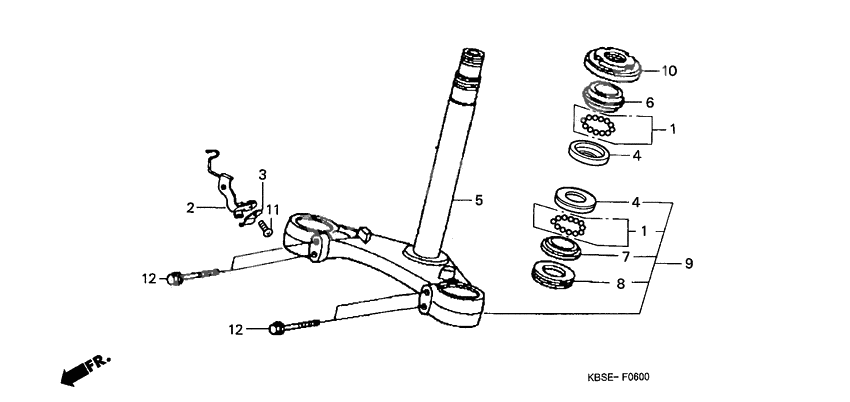

Steering stem
Steering stem
Ball (#8) (1/4) (Ref #1)
1
Part #06531-KW6-840
Ball (#8) (1/4) (Ref #1)
1
Part #06531-KW6-840
Ball (#8) (1/4) (Ref #1)
1
Part #06531-KW6-840
Ball (#8) (1/4) (Ref #1)
1
Part #06531-KW6-840
Clamper a,fr brk (Ref #2)
2
Part #45461-KBS-740
Clamper,c fr.brk. (Ref #3)
3
Part #45463-KBS-740
Race, steering ball (Ref #4)
4
Part #50301-268-010
Race, steering ball (Ref #4)
4
Part #50301-268-010
Race, steering ball (Ref #4)
4
Part #50301-268-010
Race, steering ball (Ref #4)
4
Part #50301-268-010
Stem comp,strg. (Ref #5)
5
Part #53200-KBS-900
Race, steering cone (Ref #6)
6
Part #53211-268-010
Race,strg bottom (Ref #7)
7
Part #53212-200-305
DUST SEAL (Ref #8)
8
Part #53214-200-000
Stem sub assy,str (Ref #9)
9
Part #53219-KBS-W00
Thread (Ref #10)
10
Part #53220-KE8-010
Болт (Ref #11)
11
Part #93500-050-080-A
BOLT (Ref #12)
12
Part #95701-080-350-0
BOLT (Ref #12)
12
Part #95701-080-350-0
BOLT (Ref #12)
12
Part #95701-080-350-0
BOLT (Ref #12)
12
Part #95701-080-350-0
