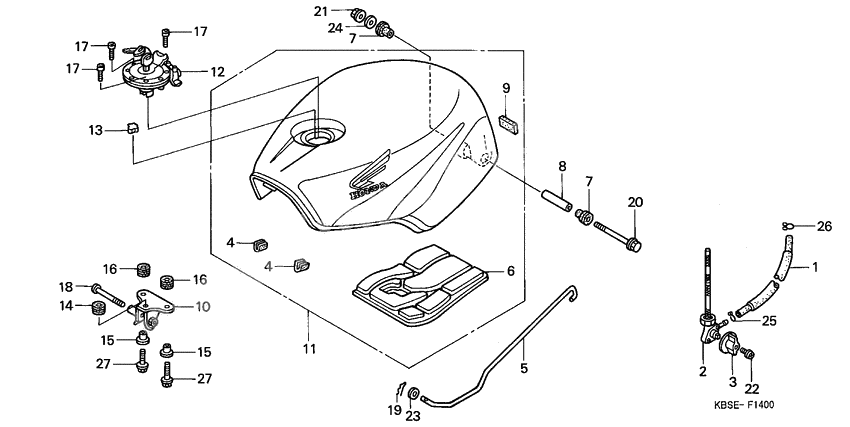

Tank fuel
Tank fuel
Трубка топливная (Ref #1)
1
Part #16905-KBS-900
Cock assy.,fuel (Ref #2)
2
Part #16950-KBS-900
LEVER,FUEL COCK (Ref #3)
3
Part #16965-KBS-900
Rubber,f.tank sid (Ref #4)
4
Part #17513-KBS-900
Rubber,f.tank sid (Ref #4)
4
Part #17513-KBS-900
Rubber,f.tank sid (Ref #4)
4
Part #17513-KBS-900
Rubber,f.tank sid (Ref #4)
4
Part #17513-KBS-900
Rod,tank open (Ref #5)
5
Part #17515-KBS-900
Silencer mat,fuel (Ref #6)
6
Part #17516-KBS-900
RUBBER,FUEL TANK (Ref #7)
7
Part #17517-KBS-900
RUBBER,FUEL TANK (Ref #7)
7
Part #17517-KBS-900
RUBBER,FUEL TANK (Ref #7)
7
Part #17517-KBS-900
RUBBER,FUEL TANK (Ref #7)
7
Part #17517-KBS-900
Collar,fuel tank (Ref #8)
8
Part #17518-KBS-900
Rubber,f.tank piv (Ref #9)
9
Part #17519-KBS-900
Bar,f.tank lock (Ref #10)
10
Part #17521-KBS-900
Tank sub as*r127* (Ref #11)
11
Part #17530-KBS-D00ZB
Tank sub ass*nh1* (Ref #11)
11
Part #17530-KBS-D00ZA
Cap, fuel filler (Ref #12)
12
Part #17620-MN8-911
RUBBER (Ref #13)
13
Part #17646-MN8-700
Rubber, fr. fender mounting (Ref #14)
14
Part #61103-357-000
Collar, setting (Ref #15)
15
Part #61104-422-000
Collar, setting (Ref #15)
15
Part #61104-422-000
Collar, setting (Ref #15)
15
Part #61104-422-000
Collar, setting (Ref #15)
15
Part #61104-422-000
Rub, cowl mounting (Ref #16)
16
Part #64615-KR1-860
Rub, cowl mounting (Ref #16)
16
Part #64615-KR1-860
Rub, cowl mounting (Ref #16)
16
Part #64615-KR1-860
Rub, cowl mounting (Ref #16)
16
Part #64615-KR1-860
Bolt,socket 8x65 (Ref #18)
18
Part #90104-KBS-900
Pin,lock,6mm (Ref #19)
19
Part #90123-KBS-900
Bolt, tank hinge (Ref #20)
20
Part #90135-MS2-000
Nut, u, 6mm (Ref #21)
21
Part #90301-473-003
Screw-washer (Ref #22)
22
Part #93892-050-120-7
Шайба (Ref #23)
23
Part #94101-06700
Шайба (Ref #24)
24
Part #94103-06800
CLIP (Ref #25)
25
Part #95002-01130
CLIP (Ref #26)
26
Part #95002-02120
BOLT (Ref #27)
27
Part #95701-060-220-7
BOLT (Ref #27)
27
Part #95701-060-220-7
BOLT (Ref #27)
27
Part #95701-060-220-7
BOLT (Ref #27)
27
Part #95701-060-220-7
