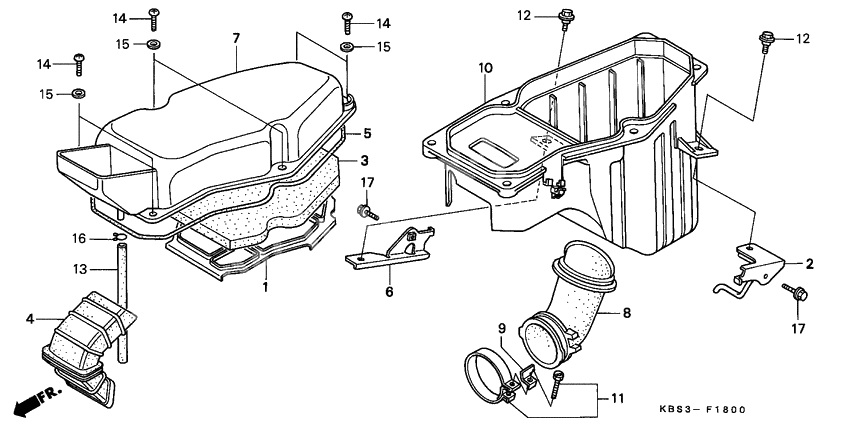

Воздушный фильтр
Воздушный фильтр
Держатель элемента (Ref #1)
1
Part #17211-KBS-900
Stay,l.air cleane (Ref #2)
2
Part #17212-KBS-900
Element,air/c (Ref #3)
3
Part #17213-KBS-900
DUCT,AIR CLEANER (Ref #4)
4
Part #17214-KBS-900
SEAL,AIR CLEANER (Ref #5)
5
Part #17215-KBS-900
Stay,r.air cleane (Ref #6)
6
Part #17216-KBS-900
COVER,AIR CLEANER (Ref #7)
7
Part #17220-KBS-900
Tube,air cleaner (Ref #8)
8
Part #17222-KBS-900
Stopper,connectin (Ref #9)
9
Part #17223-KBS-900
Case,air cleaner (Ref #10)
10
Part #17230-KBS-900
Band,air/c conn.t (Ref #11)
11
Part #17255-KY4-770
BOLT (Ref #12)
12
Part #90111-187-000
BOLT (Ref #12)
12
Part #90111-187-000
BOLT (Ref #12)
12
Part #90111-187-000
BOLT (Ref #12)
12
Part #90111-187-000
V.tube,8x12x570 (Ref #13)
13
Part #91465-KBS-900
Clip, tube (c12) (Ref #16)
16
Part #9500280000
BOLT (Ref #17)
17
Part #95701-060-160-7
BOLT (Ref #17)
17
Part #95701-060-160-7
BOLT (Ref #17)
17
Part #95701-060-160-7
BOLT (Ref #17)
17
Part #95701-060-160-7
