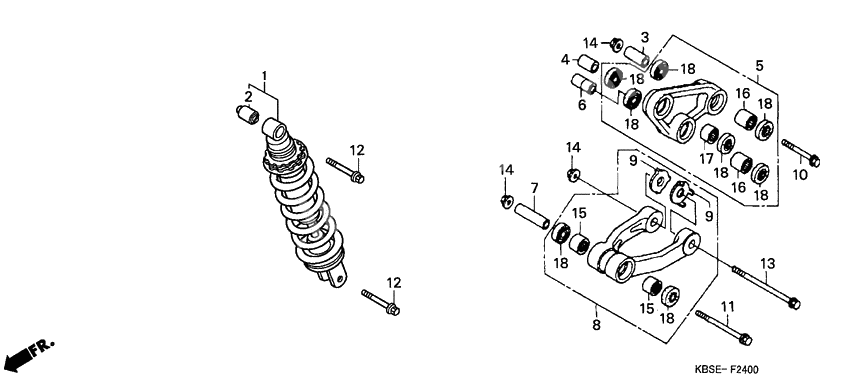

Rear cushion
Rear cushion
Cushion assy.,rr. (Ref #1)
1
Part #52400-KBS-901
Bush, shock (lower) (Ref #2)
2
Part #52451-MA0-000
Collar,cush.arm (Ref #3)
3
Part #52463-KBS-900
Collar,cushion lo (Ref #4)
4
Part #52464-KBS-900
Arm sub assy,cush (Ref #5)
5
Part #52465-KBS-305
Collar,cush.arm c (Ref #6)
6
Part #52466-KBS-900
Collar,cushion ar (Ref #7)
7
Part #52473-KBS-900
Conn rod set,cush (Ref #8)
8
Part #52475-KBS-305
Шайба упорная (Ref #9)
9
Part #52476-KBS-900
Шайба упорная (Ref #9)
9
Part #52476-KBS-900
Шайба упорная (Ref #9)
9
Part #52476-KBS-900
Шайба упорная (Ref #9)
9
Part #52476-KBS-900
Болт (Ref #10)
10
Part #90101-KBS-900
Болт (Ref #11)
11
Part #90102-KBS-900
Bolt, flange, 10x43 (Ref #12)
12
Part #90153-KW3-003
Bolt, flange, 10x43 (Ref #12)
12
Part #90153-KW3-003
Bolt, flange, 10x43 (Ref #12)
12
Part #90153-KW3-003
Bolt, flange, 10x43 (Ref #12)
12
Part #90153-KW3-003
Bolt, flg (10x113) (Ref #13)
13
Part #90181-KE7-000
BEARING,NEEDLE (Ref #15)
15
Part #91052-KAK-900
BEARING,NEEDLE (Ref #15)
15
Part #91052-KAK-900
BEARING,NEEDLE (Ref #15)
15
Part #91052-KAK-900
BEARING,NEEDLE (Ref #15)
15
Part #91052-KAK-900
Brg.needle 15x21x (Ref #16)
16
Part #91071-KBS-900
Brg.needle 15x21x (Ref #16)
16
Part #91071-KBS-900
Brg.needle 15x21x (Ref #16)
16
Part #91071-KBS-900
Brg.needle 15x21x (Ref #16)
16
Part #91071-KBS-900
BEARING,NEEDLE (Ref #17)
17
Part #91079-KAK-900
