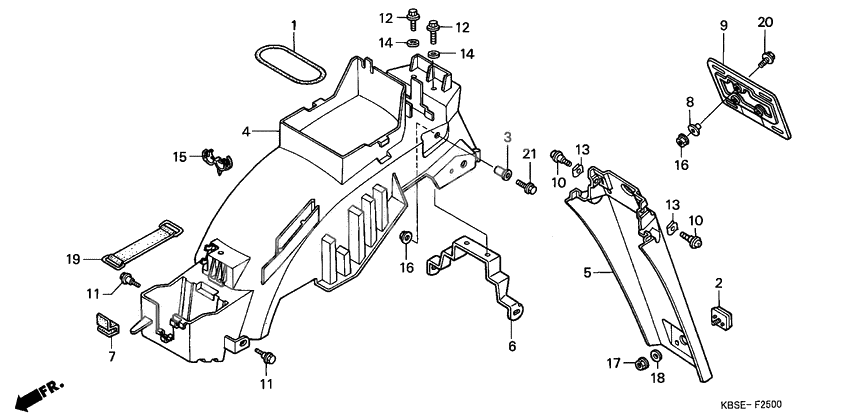

Rear fender
Rear fender
Band b,radiator (Ref #1)
1
Part #19036-KA3-700
REFLEX REFLECTOR (Ref #2)
2
Part #33741-KY4-902
Collar, setting (Ref #3)
3
Part #61104-422-000
Fender comp,rr (Ref #4)
4
Part #80100-KBS-W50
Fender d,rr. (Ref #5)
5
Part #80102-KBS-730
Brkt,rr winker (Ref #6)
6
Part #80110-KBS-W50
Grommet,rr.fender (Ref #7)
7
Part #80128-KY4-900
Collar, lock setting (Ref #8)
8
Part #83119-MG9-000
Bracket,number pl (Ref #9)
9
Part #84701-KY4-790
Screw, pan, 5x13 (Ref #10)
10
Part #90108-MN0-000
Screw, pan, 5x13 (Ref #10)
10
Part #90108-MN0-000
Screw, pan, 5x13 (Ref #10)
10
Part #90108-MN0-000
Screw, pan, 5x13 (Ref #10)
10
Part #90108-MN0-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
BOLT (Ref #11)
11
Part #90111-187-000
Болт (Ref #12)
12
Part #90111-ML0-730
Болт (Ref #12)
12
Part #90111-ML0-730
Болт (Ref #12)
12
Part #90111-ML0-730
Болт (Ref #12)
12
Part #90111-ML0-730
Nut, spring (5mm) (Ref #13)
13
Part #90322-MM5-000
Nut, spring (5mm) (Ref #13)
13
Part #90322-MM5-000
Nut, spring (5mm) (Ref #13)
13
Part #90322-MM5-000
Nut, spring (5mm) (Ref #13)
13
Part #90322-MM5-000
Washer, plain, 8mm (Ref #14)
14
Part #90501-399-880
Washer, plain, 8mm (Ref #14)
14
Part #90501-399-880
Washer, plain, 8mm (Ref #14)
14
Part #90501-399-880
Washer, plain, 8mm (Ref #14)
14
Part #90501-399-880
Clip, harness (Ref #15)
15
Part #90684-ZA0-601
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
Гайка (Ref #16)
16
Part #94050-06000
ナット (Ref #17)
17
Part #94050-06070
Шайба (Ref #18)
18
Part #94103-06000
Band f, battery (Ref #19)
19
Part #9501217001
BOLT (Ref #20)
20
Part #95701-060-160-0
Bolt, flange, 6x22 (Ref #21)
21
Part #95701-0602200
