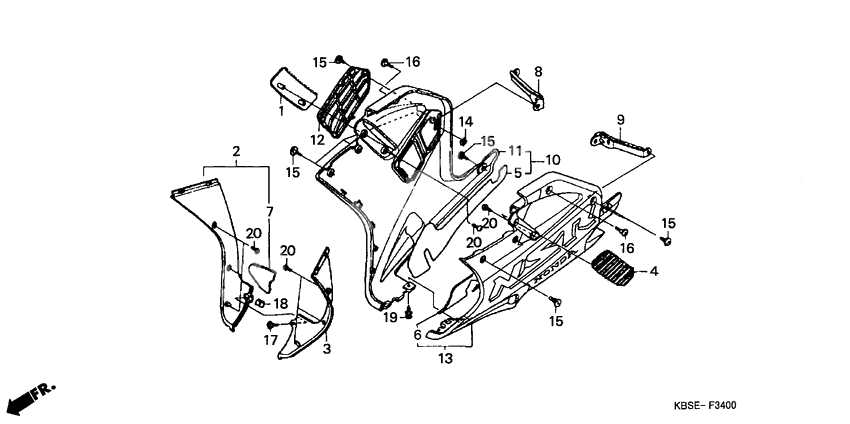

Lower cowl
Lower cowl
Louver,r *nh146m* (Ref #1)
1
Part #64316-KBS-740ZB
Stiffner s*pb149* (Ref #2)
2
Part #64317-KBS-740ZN
Stiffner set*nh1* (Ref #2)
2
Part #64317-KBS-740ZE
Stiffner,l*pb149* (Ref #3)
3
Part #64325-KBS-740ZN
Stiffner,l l*nh1* (Ref #3)
3
Part #64325-KBS-740ZE
Louver,l *nh146m* (Ref #4)
4
Part #64326-KBS-740ZB
Heat,guard,l.lwr. (Ref #6)
6
Part #64328-KBS-730
Heat guard,r lwr. (Ref #7)
7
Part #64329-KBS-730
Stay,r lwr cowl m (Ref #8)
8
Part #64531-KBS-740
Stay,l lwr cowl m (Ref #9)
9
Part #64532-KBS-740
Set illust*type2* (Ref #10)
10
Part #83540-KBS-D00ZB
Set illust*type1* (Ref #10)
10
Part #83540-KBS-D00ZA
Set illust*type2* (Ref #12)
12
Part #83560-KBS-D00ZB
Set illust*type1* (Ref #12)
12
Part #83560-KBS-D00ZA
Set illust*type2* (Ref #13)
13
Part #83640-KBS-D00ZB
Set illust*type1* (Ref #13)
13
Part #83640-KBS-D00ZA
Nut, fender setting (Ref #14)
14
Part #84601-HA7-670
Screw (6x19) (Ref #16)
16
Part #90104-MM5-000
Screw (6x19) (Ref #16)
16
Part #90104-MM5-000
Screw (6x19) (Ref #16)
16
Part #90104-MM5-000
Screw (6x19) (Ref #16)
16
Part #90104-MM5-000
Screw, pan, 5x13 (Ref #17)
17
Part #90108-MN0-000
Nut, spring (5mm) (Ref #18)
18
Part #90322-MM5-000
ДЕТАЛЬ (Ref #19)
19
Part #90683-GR1-003
