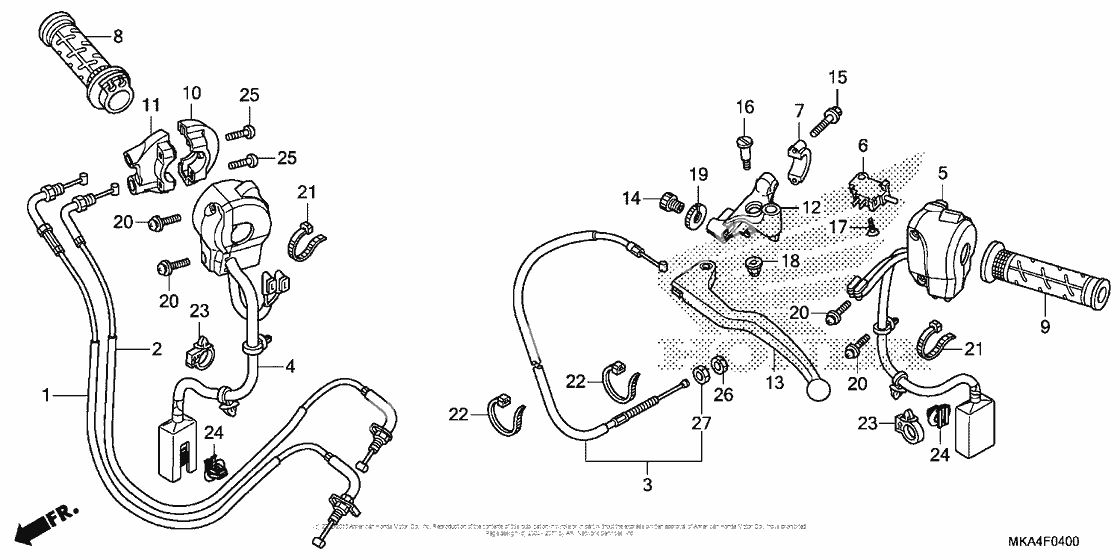

Ручка руля & Пульт управления рулевой & Тросики
Ручка руля & Пульт управления рулевой & Тросики
Cable a, throttle (Ref #1)
1
Part #17910-MKA-D81
Cable b, throttle (Ref #2)
2
Part #17920-MKA-D81
Тросик сцепления (Ref #3)
3
Part #22870-MKA-D81
Switch, engine stop (Ref #4)
4
Part #35130-MKA-D81
Switch, turn signal (Ref #5)
5
Part #35200-MJL-A31
Switch assy., clutch (Ref #6)
6
Part #35330-MCJ-751
HOLDER (Ref #7)
7
Part #45517-166-006
Зажим дросселя (Ref #8)
8
Part #53140-MGS-D30
Grip, l. handle (Ref #9)
9
Part #53150-MGS-305
Housing, throttle (Ref #10)
10
Part #53167-MGS-D30
Housing, throttle (Ref #11)
11
Part #53168-MGS-D30
HOLDER, CLUTCH LEVER (Ref #12)
12
Part #53172-MKA-D80
Lever, l. handle (Ref #13)
13
Part #53178-MJE-305
BOLT (Ref #14)
14
Part #53192-349-690
BOLT, FLANGE (6X22) (Ref #15)
15
Part #90013-GHB-660
Болт (Ref #16)
16
Part #90113-438-000
Screw, flat (3x16) (Ref #17)
17
Part #90124-MCJ-752
Nut, cap, 6mm (Ref #18)
18
Part #90201-415-000
Nut, fixing (Ref #19)
19
Part #90321-KT7-760
Screw-washer (5x16) (Ref #20)
20
Part #90508-MGS-D30
Band, wire (Ref #21)
21
Part #90650-KW3-000
Band, wire, 165mm (black) (Ref #22)
22
Part #90651-KV6-003
CLAMP (Ref #23)
23
Part #90652-HC4-003
Clip, connector (Ref #24)
24
Part #91533-MGS-D30
Screw, pan (5x22) (Ref #25)
25
Part #93500-050220G
Nut, hex. (8mm) (Ref #26)
26
Part #94002-080700S
Nut,hex.,8mm (Ref #27)
27
Part #94031-08070
