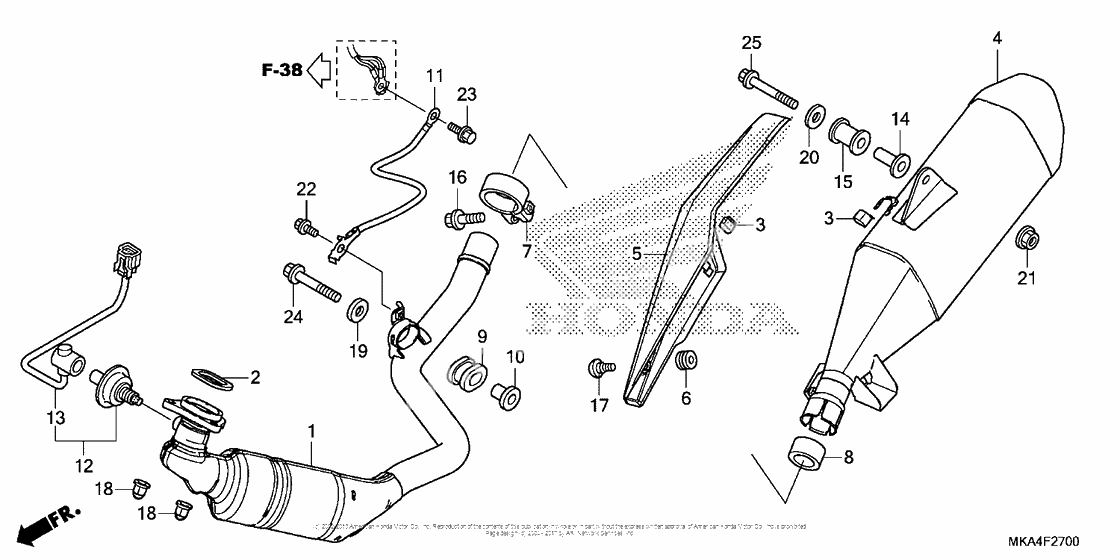

Выхлопная система
Выхлопная система
Pipe, ex. (Ref #1)
1
Part #18150-MGS-D34
Gasket, ex. pipe (Ref #2)
2
Part #18291-MGS-D31
RUBBER (Ref #3)
3
Part #18293-MCA-A20
MUFFLER (Ref #4)
4
Part #18310-MKA-A31
COVER, MUFFLER (Ref #5)
5
Part #18342-MKA-D81
RUBBER (Ref #6)
6
Part #18345-MBT-610
Band, r. fr. muffler (Ref #7)
7
Part #18373-413-000
Gasket, muffler (Ref #8)
8
Part #18392-MK4-000
RUBBER (Ref #9)
9
Part #18422-MFJ-D10
COLLAR (Ref #10)
10
Part #18423-MGS-D30
Sub-harness (Ref #11)
11
Part #32200-MGS-D30
Sensor, oxygen (Ref #12)
12
Part #36532-MGS-D31
Wire, oxygen sensor (Ref #13)
13
Part #36533-MGS-D31
COLLAR (Ref #14)
14
Part #50607-KK6-000
RUBBER (Ref #15)
15
Part #50608-KV0-000
Болт (Ref #16)
16
Part #90103-KCM-620
Screw, pan (6x12) (Ref #17)
17
Part #90113-GFP-B00
Nut, cap (8mm) (Ref #18)
18
Part #90304-ME1-670
Washer, 8mm (Ref #19)
19
Part #90501-819-000
Шайба (Ref #20)
20
Part #90534-MV4-000
Гайка (Ref #21)
21
Part #94050-08080
BOLT (Ref #22)
22
Part #95701-060-120-0
Bolt, flange, 6x14 (Ref #23)
23
Part #95701-0601407
Болт (Ref #24)
24
Part #96300-080-450-4
Болт (Ref #25)
25
Part #96300-080-500-4
