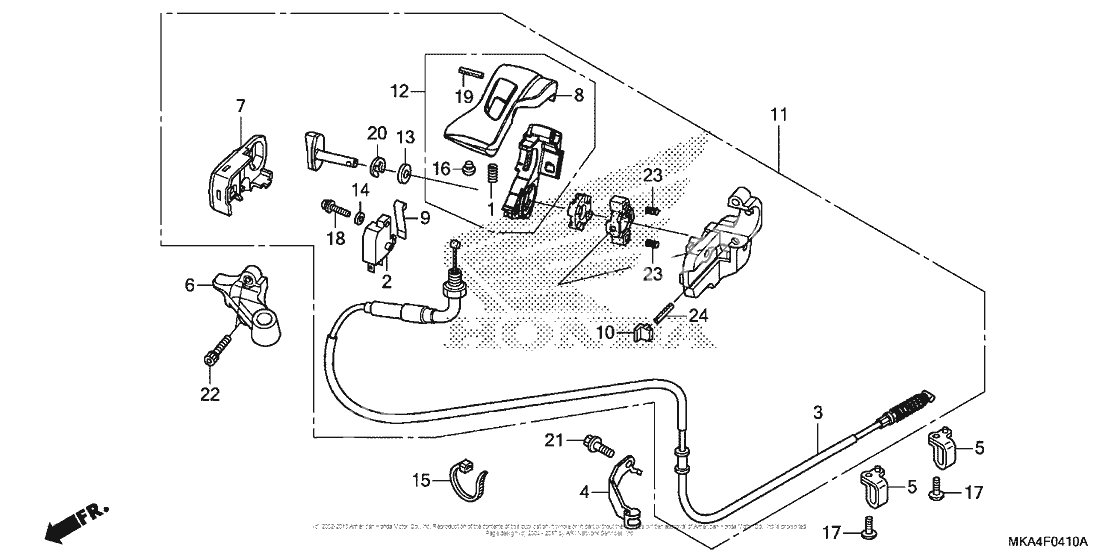

Parking brake lever
Parking brake lever
Spring, ball setting (Ref #1)
1
Part #24271-743-000
Switch, fr. stop (Ref #2)
2
Part #35340-MGS-D31
Cable, parking brake (Ref #3)
3
Part #43450-MGS-D51
Clamp, parking brake (Ref #4)
4
Part #43455-MGS-D50
Guide, parking brake (Ref #5)
5
Part #43456-MGS-D70
Holder (upper) (Ref #6)
6
Part #47111-MGS-D50
Cover, holder (Ref #7)
7
Part #47117-MGS-D50
Lever, parking top (Ref #8)
8
Part #47152-MGS-D51
Spring, switch (Ref #9)
9
Part #47154-MGE-D00
Cap, holder (lower) (Ref #10)
10
Part #47156-MGE-D00
Lever assy., parking (Ref #11)
11
Part #47200-MGS-D51
Lever, parking (Ref #12)
12
Part #47210-MGS-D51
Washer, 10.2mm (Ref #13)
13
Part #90401-430-000
Шайба (Ref #14)
14
Part #90515-GN5-910
Band, wire, 165mm (black) (Ref #15)
15
Part #90651-KV6-003
PLUG (Ref #16)
16
Part #90801-SB0-000
Болт (Ref #17)
17
Part #93500-050-160-G
Screw-washer (4x14) (Ref #18)
18
Part #93892-040-140-7
Штифт пружины (Ref #19)
19
Part #94305-30283
E-RING (Ref #20)
20
Part #94540-09018
BOLT (Ref #21)
21
Part #96001-060-140-0
Bolt, socket (6x20) (Ref #22)
22
Part #96600-0602007
New Genuine Part (Ref #23)
23
Part #47155-MGE-D00
PIN, SPRING (3X22) (Ref #24)
24
Part #94305-30223
