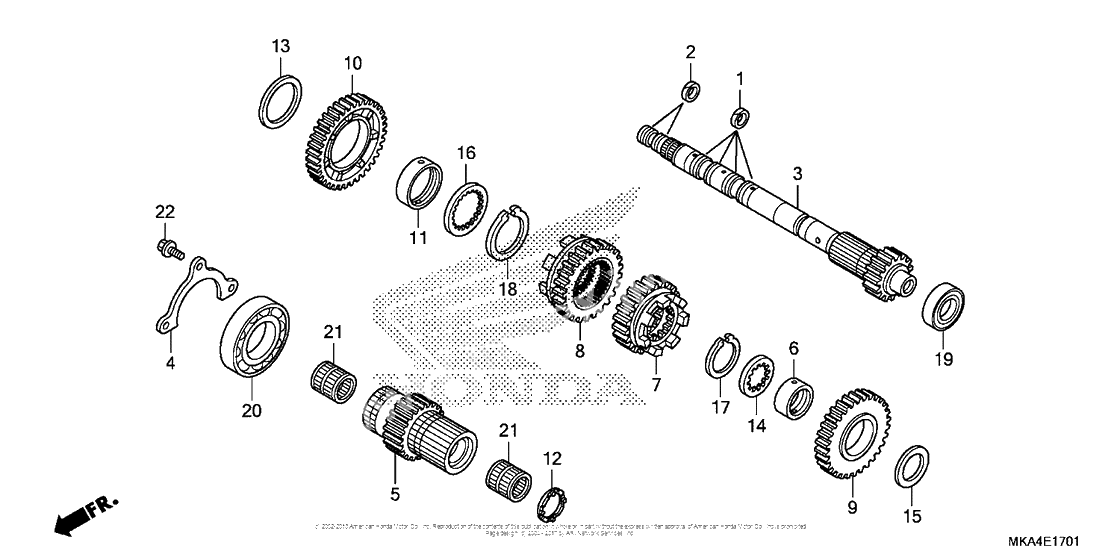

Transmission (mainshaft)
Transmission (mainshaft)
Ring, sealing (26mm) (Ref #1)
1
Part #22814-PFL-003
ПРОКЛАДКА ПРИЕМНОЙ ТРУБЫ (Ref #2)
2
Part #22814-RGC-003
Mainshaft (inner) (Ref #3)
3
Part #23210-MJL-D50
PLATE (Ref #4)
4
Part #23212-MGS-D30
MAINSHAFT (21T) (Ref #5)
5
Part #23231-MKA-D50
Collar (30x11.2) (Ref #6)
6
Part #23442-MS2-610
Gear (22t) (Ref #7)
7
Part #23451-MKA-D50
Gear (25t) (Ref #8)
8
Part #23471-MKA-D50
Gear (30t) (Ref #9)
9
Part #23491-MKA-D50
Gear (37t) (Ref #10)
10
Part #23511-MKA-A50
Collar (40x43x10) (Ref #11)
11
Part #23512-MGS-D20
Washer, special (Ref #12)
12
Part #90401-MJL-D50
Шайба (Ref #13)
13
Part #90403-MK2-300
Шайба (Ref #14)
14
Part #90452-MAT-000
Шайба (Ref #15)
15
Part #90458-MAT-E00
Шайба (Ref #16)
16
Part #90493-MGE-D00
Кольцо стопорное (Ref #17)
17
Part #90604-MM5-000
Circlip (40mm) (Ref #18)
18
Part #90605-MGE-D00
Bearing (6204u) (Ref #19)
19
Part #91006-MGS-D31
Bearing (6008) (Ref #20)
20
Part #91023-MGS-D21
Brg,ndl.26x31x22 (Ref #21)
21
Part #91104-PL9-008
BOLT (Ref #22)
22
Part #95701-060-140-0
