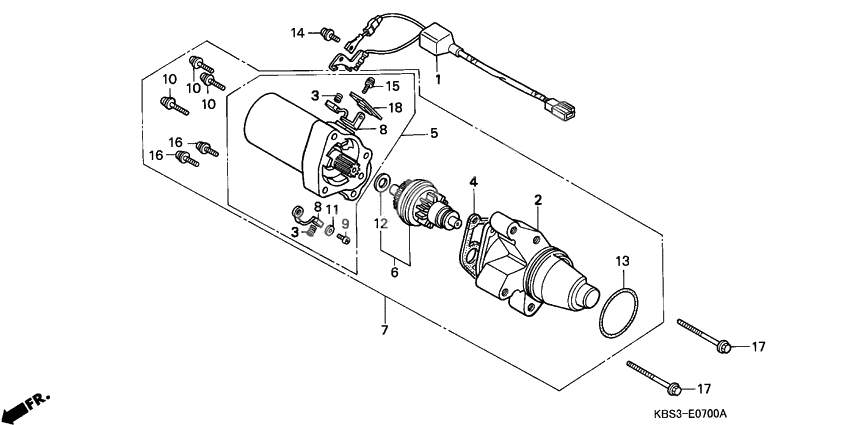

Starting motor
Starting motor
Sub harness a (Ref #1)
1
Part #31201-KBS-901
Cover comp.,gear (Ref #2)
2
Part #31203-KY4-901
Spring, carbon brush (Ref #3)
3
Part #31204-KG8-004
Spring, carbon brush (Ref #3)
3
Part #31204-KG8-004
Spring, carbon brush (Ref #3)
3
Part #31204-KG8-004
Spring, carbon brush (Ref #3)
3
Part #31204-KG8-004
Gasket a (Ref #4)
4
Part #31205-GC8-004
Motor only (Ref #5)
5
Part #31208-KY4-901
Шестерня (Ref #6)
6
Part #31209-KY4-902
Motor unit.start (Ref #7)
7
Part #31210-KY4-903
Набор щёток (Ref #8)
8
Part #32101-KY4-901
Набор щёток (Ref #8)
8
Part #32101-KY4-901
Набор щёток (Ref #8)
8
Part #32101-KY4-901
Набор щёток (Ref #8)
8
Part #32101-KY4-901
Screw-washer, 3x8 (Ref #9)
9
Part #90010-187-701
Washer, special (Ref #11)
11
Part #90501-187-701
Washer, pinion (Ref #12)
12
Part #90502-187-701
Прокладка (Ref #13)
13
Part #91309-KG8-004
Screw-washer (Ref #14)
14
Part #93892-040-060-8
Screw-washer (Ref #15)
15
Part #93892-040-080-8
КРЕПЛЕНИЕ (Ref #16)
16
Part #93892-050-200-8
КРЕПЛЕНИЕ (Ref #16)
16
Part #93892-050-200-8
КРЕПЛЕНИЕ (Ref #16)
16
Part #93892-050-200-8
КРЕПЛЕНИЕ (Ref #16)
16
Part #93892-050-200-8
BOLT (Ref #17)
17
Part #95701-080-350-8
BOLT (Ref #17)
17
Part #95701-080-350-8
BOLT (Ref #17)
17
Part #95701-080-350-8
BOLT (Ref #17)
17
Part #95701-080-350-8
GROMMET (Ref #18)
18
Part #31207-187-701
