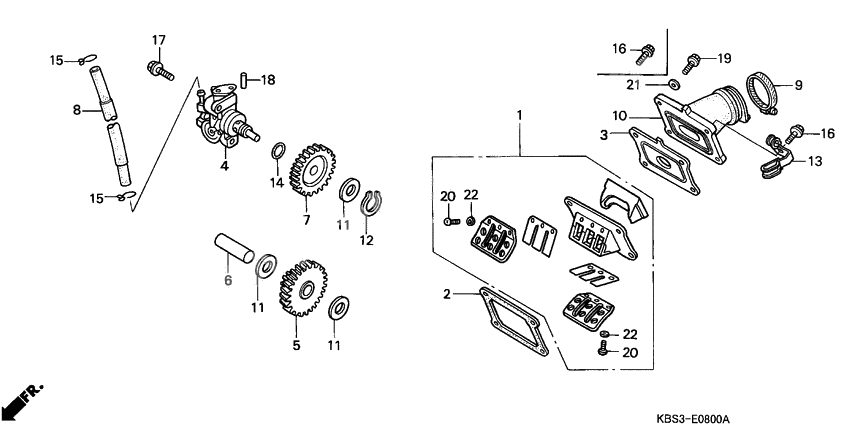

Oil pump/reed valve
Oil pump/reed valve
Valve assy.,reed (Ref #1)
1
Part #14100-KY4-900
Gasket b, reed valve (Ref #2)
2
Part #14132-KY4-970
Pump assy.,oil (Ref #4)
4
Part #15100-KY4-904
Gear,oil pump dri (Ref #5)
5
Part #15151-KY4-901
Shaft,oil pump dr (Ref #6)
6
Part #15152-KY4-900
Gear,oil pump dri (Ref #7)
7
Part #15161-KY4-900
Tube,oil pass (Ref #8)
8
Part #15525-KY4-901
Band,insulator (Ref #9)
9
Part #16213-KR1-600
Insulator,carb (Ref #10)
10
Part #16220-KY4-900
CIRCLIP. 8MM (Ref #12)
12
Part #90652-KY4-900
Clamper b,tube (Ref #13)
13
Part #90656-KY4-900
O-ring, 16mm (Ref #14)
14
Part #91303-800-000
Clip, tube (b6.5) (Ref #15)
15
Part #9500202650
Clip, tube (b6.5) (Ref #15)
15
Part #9500202650
Clip, tube (b6.5) (Ref #15)
15
Part #9500202650
Clip, tube (b6.5) (Ref #15)
15
Part #9500202650
BOLT (Ref #16)
16
Part #95701-060-220-7
BOLT (Ref #16)
16
Part #95701-060-220-7
BOLT (Ref #16)
16
Part #95701-060-220-7
BOLT (Ref #16)
16
Part #95701-060-220-7
Болт (Ref #17)
17
Part #96001-0601807
Roller, 3x15.8 (Ref #18)
18
Part #96220-30158
Screw, pan, 3x6 (Ref #20)
20
Part #93500-030-060-H
Screw, pan, 3x6 (Ref #20)
20
Part #93500-030-060-H
Screw, pan, 3x6 (Ref #20)
20
Part #93500-030-060-H
Screw, pan, 3x6 (Ref #20)
20
Part #93500-030-060-H
Шайба (Ref #22)
22
Part #94111-03800
Шайба (Ref #22)
22
Part #94111-03800
Шайба (Ref #22)
22
Part #94111-03800
Шайба (Ref #22)
22
Part #94111-03800
