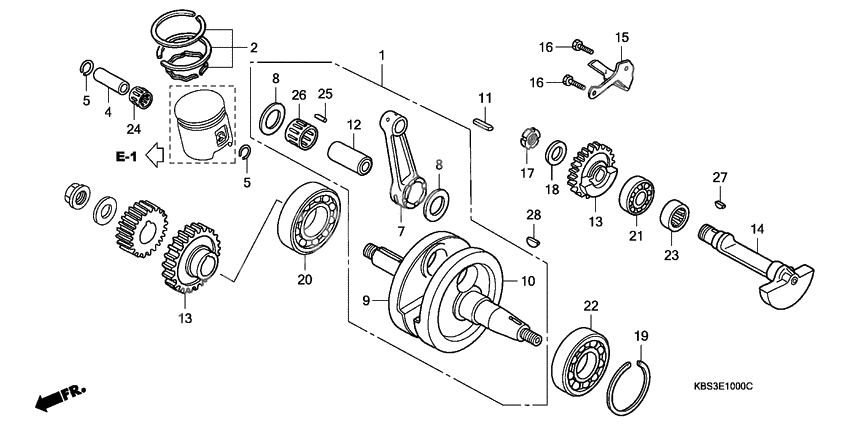

Crankshaft/piston
Crankshaft/piston
Crankshaft comp. (Ref #1)
1
Part #13000-KY4-901
Комплект колец (Ref #2)
2
Part #13010-KY4-305
Палец поршневой (Ref #4)
4
Part #13111-KM4-000
Clip, piston pin (Ref #5)
5
Part #13115-KM7-700
Clip, piston pin (Ref #5)
5
Part #13115-KM7-700
Clip, piston pin (Ref #5)
5
Part #13115-KM7-700
Clip, piston pin (Ref #5)
5
Part #13115-KM7-700
шатун (Ref #7)
7
Part #13201-KY4-900
PLATE,CONNECTING (Ref #8)
8
Part #13202-KS7-700
PLATE,CONNECTING (Ref #8)
8
Part #13202-KS7-700
PLATE,CONNECTING (Ref #8)
8
Part #13202-KS7-700
PLATE,CONNECTING (Ref #8)
8
Part #13202-KS7-700
Crankshaft,r. (Ref #9)
9
Part #13311-KY4-901
Crankshaft,l. (Ref #10)
10
Part #13321-KY4-901
Key,6x6x25 (Ref #11)
11
Part #13331-KY4-900
Палец шатунный (Ref #12)
12
Part #13381-KY4-900
Gear set,balancer (Ref #13)
13
Part #13410-KY4-900
Gear set,balancer (Ref #13)
13
Part #13410-KY4-900
Gear set,balancer (Ref #13)
13
Part #13410-KY4-900
Gear set,balancer (Ref #13)
13
Part #13410-KY4-900
Shaft,balancer (Ref #14)
14
Part #13421-KY4-900
Plate,oil guide (Ref #15)
15
Part #15201-KY4-900
Болт (Ref #16)
16
Part #90038-KY4-900
Болт (Ref #16)
16
Part #90038-KY4-900
Болт (Ref #16)
16
Part #90038-KY4-900
Болт (Ref #16)
16
Part #90038-KY4-900
Nut, lock (14mm) (Ref #17)
17
Part #90231-KY4-900
Шайба (Ref #18)
18
Part #90433-KE1-000
Set,ring (Ref #19)
19
Part #90601-KY4-900
Brg.ball radial,6 (Ref #20)
20
Part #91001-KY4-901
Bearing (6302) (Ref #21)
21
Part #91005-KY4-901
Brg,ball radial 6 (Ref #22)
22
Part #91006-KY4-903
Brg,ndl.24x36x14 (Ref #23)
23
Part #91008-KY4-901
Brg,con-rod s-end (Ref #24)
24
Part #91101-KR1-761
Ролик (Ref #25)
25
Part #91104-KV3-004
Roller b (blue) (Ref #25)
25
Part #91103-KV3-004
Rollar a (red) (Ref #25)
25
Part #91102-KV3-004
Retainer,con-rod (Ref #26)
26
Part #91105-KV3-004
Key, woodruff, 16x12 (Ref #27)
27
Part #94401-16120
Key, woodruff, 25x18 (Ref #28)
28
Part #94401-25180
