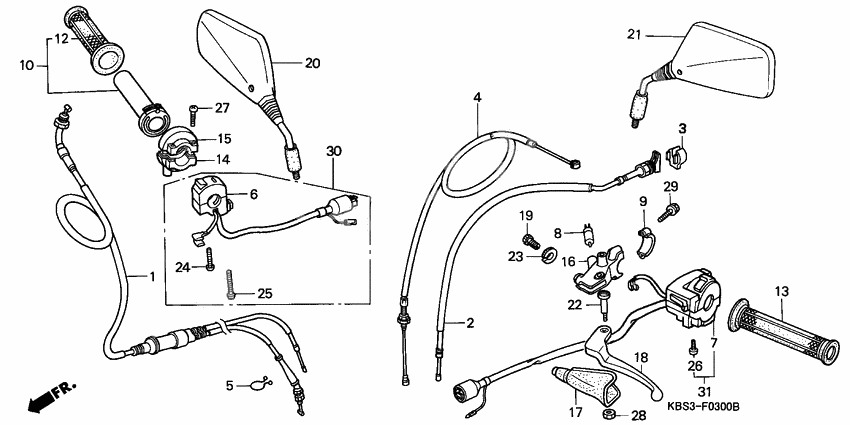

Handle lever/switch/cable
Handle lever/switch/cable
Cable comp.,throt (Ref #1)
1
Part #17910-KBS-900
Cable comp,choke (Ref #2)
2
Part #17950-KBS-W50
Cap,choke cable (Ref #3)
3
Part #17965-KBS-900
Cable comp.,clutc (Ref #4)
4
Part #22870-KBS-900
Clip, purse lock (Ref #5)
5
Part #32171-GF9-621
Switch, fr. lever (Ref #8)
8
Part #35330-413-003
Holder,master cyl (Ref #9)
9
Part #45517-KB9-960
Grip comp.,thrott (Ref #10)
10
Part #53140-KBS-900
Grip, r. handle (Ref #12)
12
Part #53165-KT8-710
Grip, l. handle (Ref #13)
13
Part #53166-KT8-710
Housing,under thr (Ref #14)
14
Part #53167-KBS-900
Housing,upper thr (Ref #15)
15
Part #53168-KBS-900
Bracket,handle le (Ref #16)
16
Part #53172-KBS-900
Cover,l.handle le (Ref #17)
17
Part #53177-KR1-760
Lever comp.,l.han (Ref #18)
18
Part #53178-KT7-000
Bolt, cable adj. (Ref #19)
19
Part #53192-268-000
Bolt,l.handle lev (Ref #22)
22
Part #90113-KR1-760
Nut, fixing (Ref #23)
23
Part #90321-315-670
Screw, pan, 4x32 (Ref #24)
24
Part #93500-040320G
Screw, pan (4x45) (Ref #25)
25
Part #93500-040450G
Болт (Ref #26)
26
Part #93500-050-200-A
Screw, pan (5x22) (Ref #27)
27
Part #93500-050220G
Гайка (Ref #28)
28
Part #94050-06000
Болт (Ref #29)
29
Part #96001-0602207
Sw set,st kill (Ref #30)
30
Part #35015-KBS-W50
Sw set,winker (Ref #31)
31
Part #35020-KBS-W50
