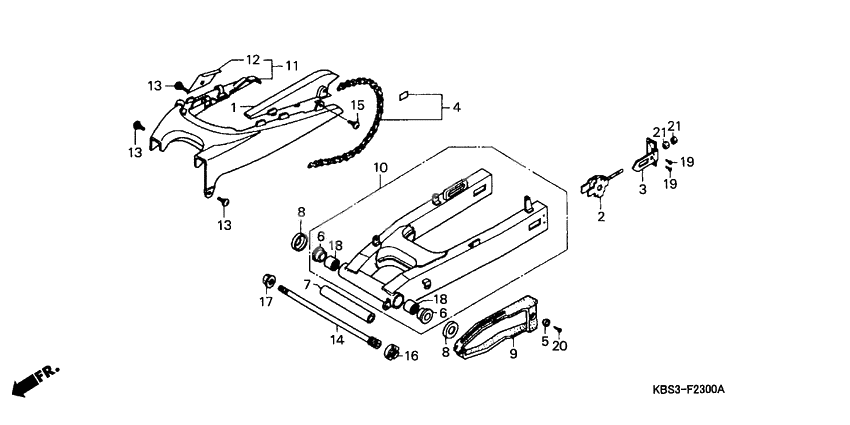

Swing arm/chain case
Swing arm/chain case
Case,drive chain (Ref #1)
1
Part #40510-KBS-900
ADJUSTER,CHAIN (Ref #2)
2
Part #40543-KBS-900
Cap,rr.fork end (Ref #3)
3
Part #40546-KY4-900
Chain set,drive(r (Ref #4)
4
Part #40550-KBS-406
Collar,chain slid (Ref #5)
5
Part #52108-KY4-900
Bush, pivot thrust (Ref #6)
6
Part #52109-430-300
Bush, pivot thrust (Ref #6)
6
Part #52109-430-300
Bush, pivot thrust (Ref #6)
6
Part #52109-430-300
Bush, pivot thrust (Ref #6)
6
Part #52109-430-300
Collar,swingarm p (Ref #7)
7
Part #52141-KBS-900
CAP (Ref #8)
8
Part #52144-GE2-005
CAP (Ref #8)
8
Part #52144-GE2-005
CAP (Ref #8)
8
Part #52144-GE2-005
CAP (Ref #8)
8
Part #52144-GE2-005
Slider,chain (Ref #9)
9
Part #52170-KBS-900
Swing arm*nh146m* (Ref #10)
10
Part #52200-KBS-305ZB
Cover,rr *nh146m* (Ref #11)
11
Part #80201-KBS-900ZC
Bolt,rr.fork pivo (Ref #14)
14
Part #90121-KY4-900
Screw (6x10) (Ref #15)
15
Part #90165-MV9-000
Nut,lock,22mm (Ref #16)
16
Part #90301-KY4-900
Nut, u (14mm) (Ref #17)
17
Part #90305-GE8-003
BEARING,NEEDLE (Ref #18)
18
Part #91070-KAK-900
BEARING,NEEDLE (Ref #18)
18
Part #91070-KAK-900
BEARING,NEEDLE (Ref #18)
18
Part #91070-KAK-900
BEARING,NEEDLE (Ref #18)
18
Part #91070-KAK-900
Болт (Ref #19)
19
Part #93901-24110
Болт (Ref #19)
19
Part #93901-24110
Болт (Ref #19)
19
Part #93901-24110
Болт (Ref #19)
19
Part #93901-24110
Screw, tap (6x10) (Ref #20)
20
Part #9390126080
Гайка (Ref #21)
21
Part #94001-062-000-S
Гайка (Ref #21)
21
Part #94001-062-000-S
Гайка (Ref #21)
21
Part #94001-062-000-S
Гайка (Ref #21)
21
Part #94001-062-000-S
