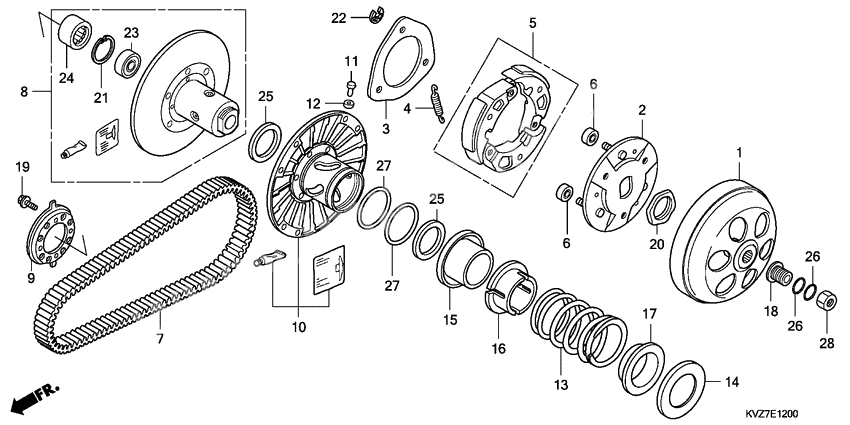

Driven face
Driven face
Бендикс (Ref #1)
1
Part #22100-KSV-J10
Пластина (Ref #2)
2
Part #22350-KFG-000
Plate, clutch side (Ref #3)
3
Part #22361-KFG-000
Пружина муфты (Ref #4)
4
Part #22401-KFF-900
Weight set (Ref #5)
5
Part #22535-KVZ-630
RUBBER (Ref #6)
6
Part #22804-GB2-000
RUBBER (Ref #6)
6
Part #22804-GB2-000
RUBBER (Ref #6)
6
Part #22804-GB2-000
RUBBER (Ref #6)
6
Part #22804-GB2-000
Belt (Ref #7)
7
Part #23100-KVZ-631
Face set (Ref #8)
8
Part #23205-KVZ-631
PLATE (Ref #9)
9
Part #23215-KSV-J30
Face set (Ref #10)
10
Part #23224-KVZ-630
Pin, roller guide (Ref #11)
11
Part #23225-KM1-010
Roller, guide (Ref #12)
12
Part #23226-KM1-010
Пружина (Ref #13)
13
Part #23233-KTW-900
Пружина (Ref #14)
14
Part #23236-KSV-J10
Collar, seal (Ref #15)
15
Part #23237-KSV-J10
Collar a (Ref #16)
16
Part #23238-KSV-J10
Collar b (Ref #17)
17
Part #23239-KSV-J10
COLLAR (Ref #18)
18
Part #23415-KTW-900
BOLT (Ref #19)
19
Part #90083-KSV-J30
Nut, special (30mm) (Ref #20)
20
Part #90202-KM1-000
Circlip (Ref #21)
21
Part #90603-KSV-J10
Circlip, 7mm (Ref #22)
22
Part #90605-166-720
Bearing (6902u) (Ref #23)
23
Part #91002-GA7-701
Bearing (25x33x18) (Ref #24)
24
Part #91002-KPB-003
Seal, driven face 4 (Ref #25)
25
Part #91211-KM1-005
Seal, driven face 4 (Ref #25)
25
Part #91211-KM1-005
Seal, driven face 4 (Ref #25)
25
Part #91211-KM1-005
Seal, driven face 4 (Ref #25)
25
Part #91211-KM1-005
Прокладка (Ref #26)
26
Part #91301-KTW-901
Прокладка (Ref #26)
26
Part #91301-KTW-901
Прокладка (Ref #26)
26
Part #91301-KTW-901
Прокладка (Ref #26)
26
Part #91301-KTW-901
Прокладка (Ref #27)
27
Part #91352-KM1-003
Прокладка (Ref #27)
27
Part #91352-KM1-003
Прокладка (Ref #27)
27
Part #91352-KM1-003
Прокладка (Ref #27)
27
Part #91352-KM1-003
Гайка (Ref #28)
28
Part #94001-122-000-S
