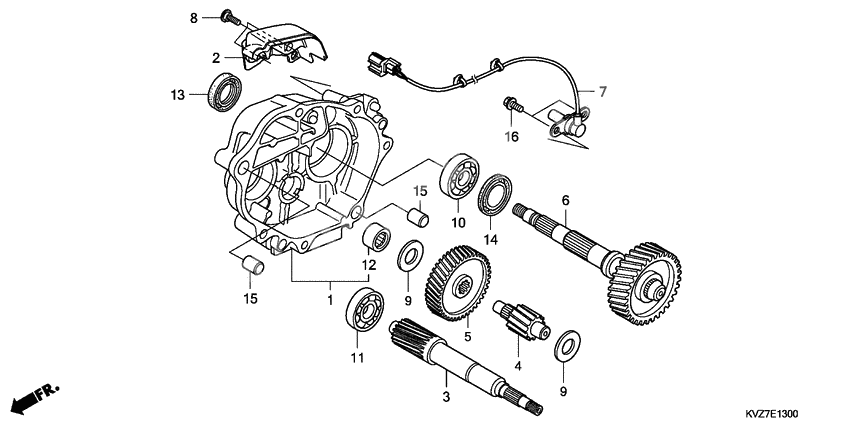

Трансмиссия
Трансмиссия
Case comp. (Ref #1)
1
Part #21300-KVZ-630
PROTECTOR (Ref #2)
2
Part #21410-KVZ-630
SHAFT (Ref #3)
3
Part #23411-KVZ-630
SHAFT (Ref #4)
4
Part #23421-KVZ-630
Шестерня (Ref #5)
5
Part #23422-KVZ-630
Gear comp (Ref #6)
6
Part #23430-KVZ-630
Датчик (Ref #7)
7
Part #38510-KVZ-661
BOLT (Ref #8)
8
Part #90111-KSV-J40
Шайба (Ref #9)
9
Part #90411-KTW-901
Шайба (Ref #9)
9
Part #90411-KTW-901
Шайба (Ref #9)
9
Part #90411-KTW-901
Шайба (Ref #9)
9
Part #90411-KTW-901
Bearing (6205-2nsg) (Ref #10)
10
Part #91006-KAB-004
BEARING (Ref #11)
11
Part #91007-KTW-901
Bearing (14x22x16) (Ref #12)
12
Part #91106-KM1-013
DUST SEAL (Ref #13)
13
Part #91251-KSV-J11
Oil seal (34x52x5) (Ref #14)
14
Part #91253-KM1-003
Штырь штифт (Ref #15)
15
Part #94301-12160
Штырь штифт (Ref #15)
15
Part #94301-12160
Штырь штифт (Ref #15)
15
Part #94301-12160
Штырь штифт (Ref #15)
15
Part #94301-12160
BOLT (Ref #16)
16
Part #96001-060-160-0
