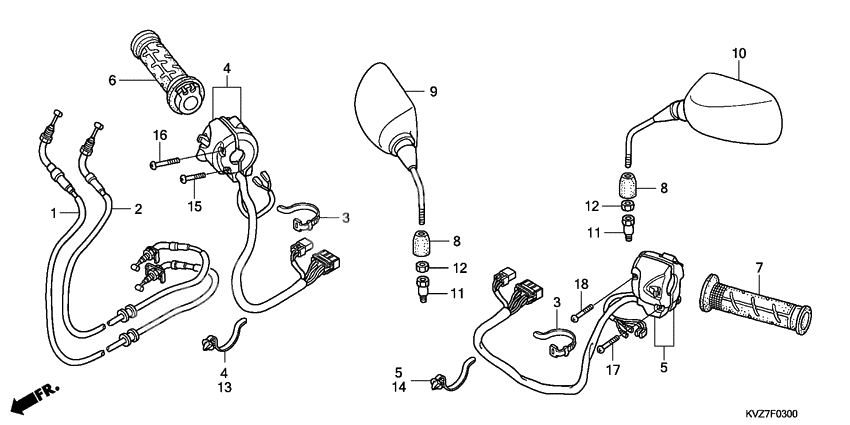

Switch/cable/mirror
Switch/cable/mirror
Cable comp. a (Ref #1)
1
Part #17910-KVZ-631
Cable comp. b (Ref #2)
2
Part #17920-KVZ-631
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Switch assy (Ref #4)
4
Part #35130-KVZ-611
Switch assy (Ref #4)
4
Part #35130-KVZ-611
Switch assy (Ref #4)
4
Part #35130-KVZ-611
Switch assy (Ref #4)
4
Part #35130-KVZ-611
Switch assy (Ref #5)
5
Part #35200-KVZ-612
Switch assy (Ref #5)
5
Part #35200-KVZ-612
Switch assy (Ref #5)
5
Part #35200-KVZ-612
Switch assy (Ref #5)
5
Part #35200-KVZ-612
Switch assy (Ref #5)
5
Part #35200-KVZ-611
Switch assy (Ref #5)
5
Part #35200-KVZ-611
Switch assy (Ref #5)
5
Part #35200-KVZ-611
Switch assy (Ref #5)
5
Part #35200-KVZ-611
Зажим дросселя (Ref #6)
6
Part #53140-KPB-000
Cover, lock nut (Ref #7)
7
Part #88130-MB6-620
Mirror comp.r (Ref #9)
9
Part #88210-MCT-692
Mirror comp.l (Ref #10)
10
Part #88220-MCT-692
Bolt, adapter (10mm) (Ref #11)
11
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #11)
11
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #11)
11
Part #90003-MW3-620
Bolt, adapter (10mm) (Ref #11)
11
Part #90003-MW3-620
Nut, hex. (10mm) (Ref #12)
12
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #12)
12
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #12)
12
Part #90201-MW3-620
Nut, hex. (10mm) (Ref #12)
12
Part #90201-MW3-620
CLIP (Ref #13)
13
Part #91540-S30-003
CLIP (Ref #14)
14
Part #91541-S0A-003
Screw-washer (5x25) (Ref #15)
15
Part #93892-0502507
Screw-washer (5x35) (Ref #16)
16
Part #93892-0503507
