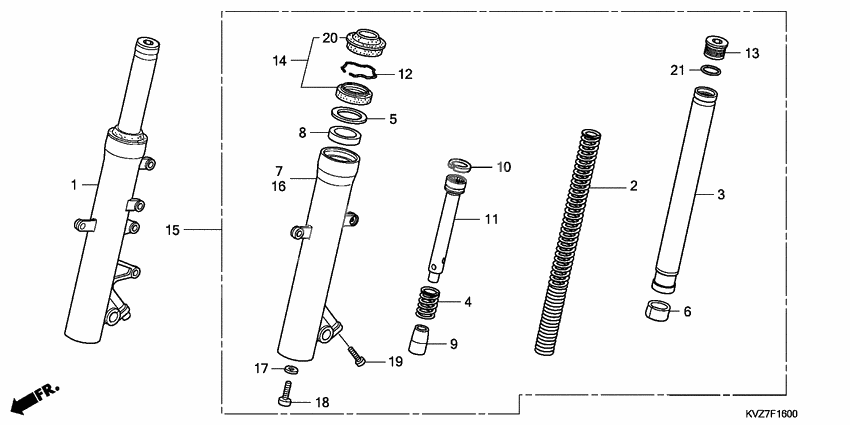

Front
Front
Вилка включения передачи (Ref #1)
1
Part #51400-KVZ-631
Пружина (Ref #2)
2
Part #51401-KVZ-631
Pipe comp (Ref #3)
3
Part #51410-KVZ-631
Spg.,rebound (Ref #4)
4
Part #51411-MF5-752
Шайба (Ref #5)
5
Part #51412-KK0-004
Втулка (Ref #6)
6
Part #51415-KVZ-631
Корпус (Ref #7)
7
Part #51421-KVZ-631
Втулка (Ref #8)
8
Part #51424-KVZ-631
Piece (Ref #9)
9
Part #51431-KVZ-631
RING (Ref #10)
10
Part #51437-KVZ-631
Pipe (Ref #11)
11
Part #51440-KVZ-631
Кольцо (Ref #12)
12
Part #51447-KK0-004
BOLT (Ref #13)
13
Part #51450-KVZ-631
Отсутствующе (Ref #14)
14
Part #51490-KVZ-631
Вилка включения передачи (Ref #15)
15
Part #51500-KVZ-631
Корпус (Ref #16)
16
Part #51521-KVZ-631
Washer, oil bolt (Ref #17)
17
Part #52442-KA3-731
Bolt, socket (10x25) (Ref #18)
18
Part #90116-KK0-004
Bolt, socket (8x25) (Ref #19)
19
Part #90120-MBB-000
Валик (Ref #20)
20
Part #91254-KVZ-631
Прокладка (Ref #21)
21
Part #91356-KVZ-631
