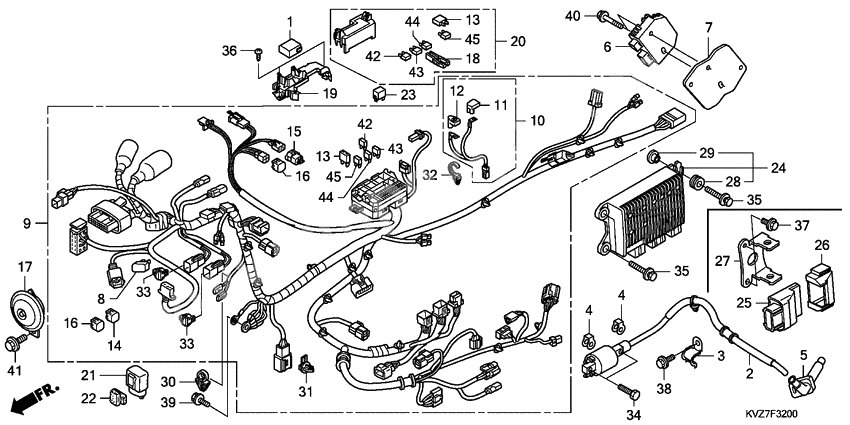

Harness wire
Harness wire
Receiver unit (Ref #1)
1
Part #30430-KSV-D01
Receiver unit (Ref #1)
1
Part #30430-KSV-D02
Катушка аккамулятора (Ref #2)
2
Part #30510-KVZ-631
Clamper (Ref #3)
3
Part #30511-KTW-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Кольцо/шайба (Ref #4)
4
Part #30520-GFM-900
Cap assy. (Ref #5)
5
Part #30700-KTW-901
Rectifier, regulator (Ref #6)
6
Part #31600-KVZ-631
PLATE (Ref #7)
7
Part #31601-KVZ-630
Rectifier comp., silicon (Ref #8)
8
Part #31700-MM8-610
Жгут проводов (Ref #9)
9
Part #32100-KVZ-610
Cable (Ref #10)
10
Part #32401-KVZ-630
COVER (Ref #11)
11
Part #32406-KAZ-010
COVER (Ref #12)
12
Part #32414-MZ5-000
Fuse, blade (40a) (Ref #13)
13
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #13)
13
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #13)
13
Part #32501-KSV-J00
Fuse, blade (40a) (Ref #13)
13
Part #32501-KSV-J00
CAP (Ref #14)
14
Part #32605-GEV-761
CAP (Ref #15)
15
Part #32605-KCW-J91
Cap, dummy (4p) (Ref #16)
16
Part #32606-GEV-761
Cap, dummy (4p) (Ref #16)
16
Part #32606-GEV-761
Cap, dummy (4p) (Ref #16)
16
Part #32606-GEV-761
Cap, dummy (4p) (Ref #16)
16
Part #32606-GEV-761
Horn comp. (Ref #17)
17
Part #38120-KVZ-631
Съёмник мини предохранитель (Ref #18)
18
Part #38235-S04-003
COVER (Ref #19)
19
Part #38252-KVZ-631
Lid comp (Ref #20)
20
Part #38253-KVZ-610
Relay, turn signal (Ref #21)
21
Part #38301-MEG-000
Suspension (Ref #22)
22
Part #38306-GE7-000
Relay (micro iso 4p) (Ref #23)
23
Part #38501-KVZ-631
Pgm-fi unit (Ref #24)
24
Part #38770-KVZ-612
Pgm-fi unit (Ref #24)
24
Part #38770-KVZ-611
Rubber, fr. fender mounting (Ref #28)
28
Part #61103-357-000
Collar, fr. fender (Ref #29)
29
Part #61104-428-010
Clip, harness (Ref #30)
30
Part #90659-734-K51
CLIP (Ref #31)
31
Part #91533-S04-003
CLIP (Ref #32)
32
Part #91541-S0A-003
CLIP (Ref #33)
33
Part #91565-S0X-003
CLIP (Ref #33)
33
Part #91565-S0X-003
CLIP (Ref #33)
33
Part #91565-S0X-003
CLIP (Ref #33)
33
Part #91565-S0X-003
Bolt, hex., 6x20 (Ref #34)
34
Part #92101-06020-4J
Bolt-washer, 6x25 (Ref #35)
35
Part #93404-0602500
Bolt-washer, 6x25 (Ref #35)
35
Part #93404-0602500
Bolt-washer, 6x25 (Ref #35)
35
Part #93404-0602500
Bolt-washer, 6x25 (Ref #35)
35
Part #93404-0602500
Болт (Ref #36)
36
Part #93903-34480
BOLT (Ref #38)
38
Part #95701-060-120-0
BOLT (Ref #39)
39
Part #95701-060-160-0
BOLT (Ref #40)
40
Part #95701-060-250-0
Bolt, flange, 8x14 (Ref #41)
41
Part #95701-080-140-0
Fuse, mini (5a) (Ref #42)
42
Part #9820040500
Fuse, mini (5a) (Ref #42)
42
Part #9820040500
Fuse, mini (5a) (Ref #42)
42
Part #9820040500
Fuse, mini (5a) (Ref #42)
42
Part #9820040500
Fuse (Ref #43)
43
Part #98200-41000
Fuse (Ref #43)
43
Part #98200-41000
Fuse (Ref #43)
43
Part #98200-41000
Fuse (Ref #43)
43
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #44)
44
Part #98200-41500
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #44)
44
Part #98200-41500
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #44)
44
Part #98200-41500
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #44)
44
Part #98200-41500
ПРЕДОХРАНИТЕЛЬ 30A (Ref #45)
45
Part #98200-43000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #45)
45
Part #98200-43000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #45)
45
Part #98200-43000
ПРЕДОХРАНИТЕЛЬ 30A (Ref #45)
45
Part #98200-43000
-
2961104-428-000
Collar, fr. fender
1Replaced by 61104-428-010 Доступно: Нет в наличии
