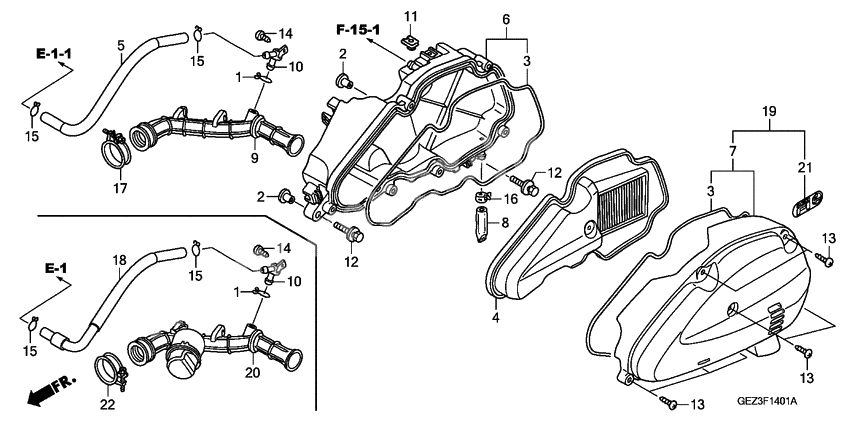

Air cleaner NPS505/6/8/9
Air cleaner NPS505/6/8/9
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Collar, air cleaner setting (Ref #2)
2
Part #17208-GR1-010
Collar, air cleaner setting (Ref #2)
2
Part #17208-GR1-010
Collar, air cleaner setting (Ref #2)
2
Part #17208-GR1-010
Collar, air cleaner setting (Ref #2)
2
Part #17208-GR1-010
Валик (Ref #3)
3
Part #17212-GEV-760
Валик (Ref #3)
3
Part #17212-GEV-760
Валик (Ref #3)
3
Part #17212-GEV-760
Валик (Ref #3)
3
Part #17212-GEV-760
Элемент (Ref #4)
4
Part #17213-GEV-761
TUBE (Ref #5)
5
Part #17218-GEZ-640
Корпус подшипника приводного вала правого (Ref #6)
6
Part #17225-GEV-761
Крышка (Ref #7)
7
Part #17227-GEZ-640
TUBE (Ref #8)
8
Part #17228-GEV-760
Tube comp (Ref #9)
9
Part #17253-GEZ-640
JOINT (Ref #10)
10
Part #17359-GEZ-640
JOINT (Ref #10)
10
Part #17359-GEZ-640
JOINT (Ref #10)
10
Part #17359-GEZ-640
JOINT (Ref #10)
10
Part #17359-GEZ-640
Nut, clip (6mm) (Ref #11)
11
Part #90305-GEE-710
Bolt-washer (6x32) (Ref #12)
12
Part #93404-0603200
Bolt-washer (6x32) (Ref #12)
12
Part #93404-0603200
Bolt-washer (6x32) (Ref #12)
12
Part #93404-0603200
Bolt-washer (6x32) (Ref #12)
12
Part #93404-0603200
Болт (Ref #14)
14
Part #93903-34480
Болт (Ref #14)
14
Part #93903-34480
Болт (Ref #14)
14
Part #93903-34480
Болт (Ref #14)
14
Part #93903-34480
CLAMP (Ref #16)
16
Part #95002-412-000-8
Band (40) (Ref #17)
17
Part #95018-40250
