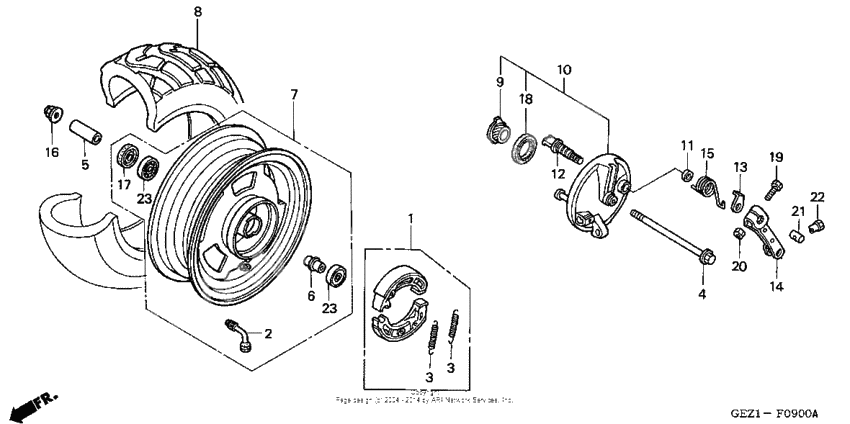

Front wheel
Front wheel
Shoe set, brake (Ref #1)
1
Part #06430-GET-000
Клапан, обод колеса (Ref #2)
2
Part #42753-GEZ-019
Spring, brake shoe (Ref #3)
3
Part #43151-GC4-000
Spring, brake shoe (Ref #3)
3
Part #43151-GC4-000
Spring, brake shoe (Ref #3)
3
Part #43151-GC4-000
Spring, brake shoe (Ref #3)
3
Part #43151-GC4-000
Axle, fr. wheel (Ref #4)
4
Part #44301-GEZ-000
Colr, fr. wheel side (Ref #5)
5
Part #44311-GEZ-000
Collar, fr. distance (Ref #6)
6
Part #44620-147-000
Wheel sub *nh303m* (Ref #7)
7
Part #44650-GGA-305ZA
Tire (120/90-10) (Ref #8)
8
Part #44711-GEZ-673
Gear, speedometer (Ref #9)
9
Part #44806-GEZ-003
Panel sub *nh303m* (Ref #10)
10
Part #45010-GEZ-000ZA
Seal, brake cam (Ref #11)
11
Part #45134-165-890
Cam, fr. brake (Ref #12)
12
Part #45141-GEZ-000
Indicator, fr. brake (Ref #13)
13
Part #45145-GEE-000
Arm, fr. brake (Ref #14)
14
Part #45410-GT8-600
Пружина (Ref #15)
15
Part #45435-GC3-000
Nut, u, 10mm (Ref #16)
16
Part #90304-GE8-003
Oil seal (19x30.5x7) (Ref #17)
17
Part #90754-147-003
Oil seal (34x42x5) (Ref #18)
18
Part #91252-GF0-004
Болт (Ref #19)
19
Part #92101-05025-0A
Гайка (Ref #20)
20
Part #94001-050-000-S
Joint a (Ref #21)
21
Part #95015-31001
Nut a, brake rod adjusting (Ref #22)
22
Part #9501541000
Bearing (6200u) (Ref #23)
23
Part #96140-6200010
Bearing (6200u) (Ref #23)
23
Part #96140-6200010
Bearing (6200u) (Ref #23)
23
Part #96140-6200010
Bearing (6200u) (Ref #23)
23
Part #96140-6200010
