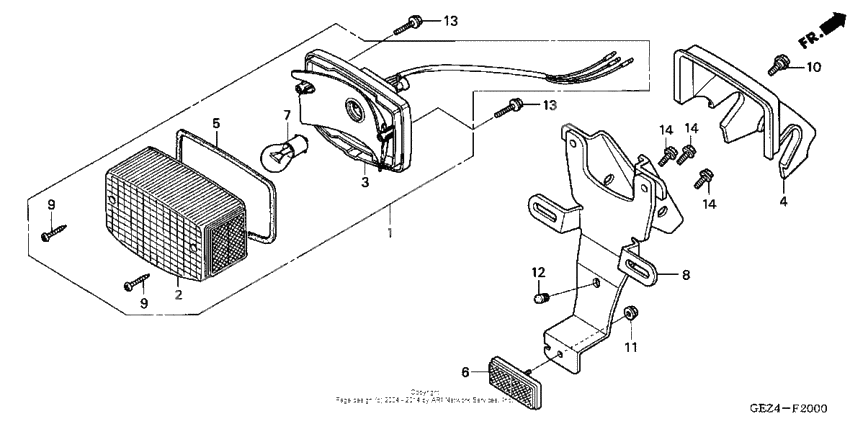

Taillight
Taillight
Taillight unit (Ref #1)
1
Part #33701-GEZ-672
Lens, taillight (Ref #2)
2
Part #33702-MGR-305
Socket, taillight (Ref #3)
3
Part #33703-GEZ-672
Cover, taillight (Ref #4)
4
Part #33705-GEZ-670
Прокладка (Ref #5)
5
Part #33709-KB7-003
Reflector, reflex (stanley) (Ref #6)
6
Part #33741-MS6-921
Bulb (12v27/8w) (Ref #7)
7
Part #34906-425-771
Bracket, taillight (Ref #8)
8
Part #84701-GEZ-670
Screw,tap 4x40 (Ref #9)
9
Part #90105-GAM-000
Screw,tap 4x40 (Ref #9)
9
Part #90105-GAM-000
Screw,tap 4x40 (Ref #9)
9
Part #90105-GAM-000
Screw,tap 4x40 (Ref #9)
9
Part #90105-GAM-000
BOLT (Ref #10)
10
Part #90111-162-000
Nut, flange (5mm) (Ref #11)
11
Part #90301-MG8-000
RUBBER (Ref #12)
12
Part #90899-MB2-000
Bolt-washer (5x14) (Ref #13)
13
Part #93404-0501400
Bolt-washer (5x14) (Ref #13)
13
Part #93404-0501400
Bolt-washer (5x14) (Ref #13)
13
Part #93404-0501400
Bolt-washer (5x14) (Ref #13)
13
Part #93404-0501400
