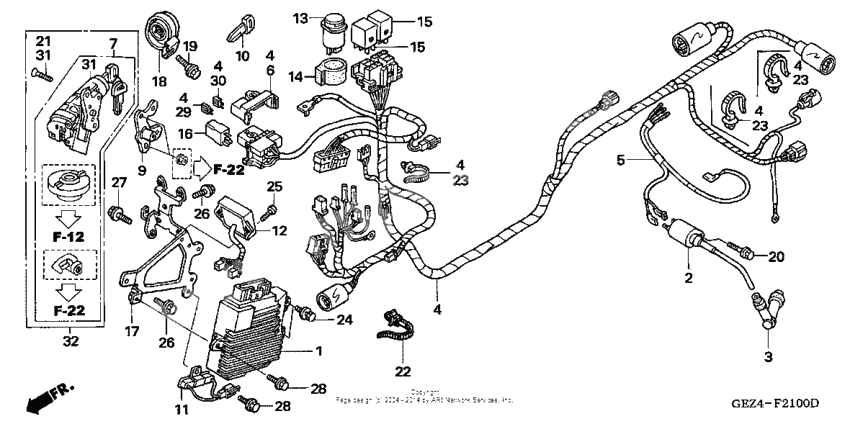

Wire harness
Wire harness
Control unit, engine (Ref #1)
1
Part #30400-GEZ-672
Катушка зажигания (Ref #2)
2
Part #30510-GET-003
Cap,suppressor (Ref #3)
3
Part #30700-KE2-942
Sub-wire, ignition (Ref #5)
5
Part #32101-GEZ-670
Cover, battery box (Ref #6)
6
Part #32111-GEZ-671
Guide (Ref #9)
9
Part #35105-GET-000
Key, blank (type2) (Ref #10)
10
Part #35122-GET-007
Key, blank (type1) (Ref #10)
10
Part #35121-GET-007
Resistor comp (Ref #11)
11
Part #35400-GCK-030
Drive unit, l.e.d. (Ref #12)
12
Part #37565-GEZ-671
Relay (Ref #13)
13
Part #38301-GET-671
Suspension (Ref #14)
14
Part #38306-292-000
Relay (micro iso 4p) (Ref #15)
15
Part #38501-MCS-G01
Relay (micro iso 4p) (Ref #15)
15
Part #38501-MCS-G01
Relay (micro iso 4p) (Ref #15)
15
Part #38501-MCS-G01
Relay (micro iso 4p) (Ref #15)
15
Part #38501-MCS-G01
Relay (micro iso 5p) (Ref #16)
16
Part #38502-MCS-G01
Stay, pilot box (Ref #17)
17
Part #64303-GEZ-010
Cap, switch *nh1* (Ref #18)
18
Part #81136-GEZ-670ZA
Болт (Ref #19)
19
Part #90111-GJ5-000
Bolt, flange, 5x22 (Ref #20)
20
Part #90112-GK8-010
Screw, flat (6x22) (Ref #21)
21
Part #90164-GEE-003
Ременная лента кабель (Ref #22)
22
Part #90672-SB2-003
Bolt-washer (Ref #24)
24
Part #93401-050-120-8
Болт (Ref #25)
25
Part #93500-040-160-A
BOLT (Ref #26)
26
Part #95701-060-120-8
BOLT (Ref #26)
26
Part #95701-060-120-8
BOLT (Ref #26)
26
Part #95701-060-120-8
BOLT (Ref #26)
26
Part #95701-060-120-8
BOLT (Ref #27)
27
Part #95701-060-160-0
BOLT (Ref #28)
28
Part #96001-060-120-0
BOLT (Ref #28)
28
Part #96001-060-120-0
BOLT (Ref #28)
28
Part #96001-060-120-0
BOLT (Ref #28)
28
Part #96001-060-120-0
Fuse (Ref #29)
29
Part #98200-41000
Fuse (Ref #30)
30
Part #98200-42000
Switch assy. set (Ref #31)
31
Part #35012-GEZ-Y21
Switch assy. set (Ref #31)
31
Part #35012-GEZ-Y21
Switch assy. set (Ref #31)
31
Part #35012-GEZ-Y21
Switch assy. set (Ref #31)
31
Part #35012-GEZ-Y21
Key & screw set (Ref #32)
32
Part #35014-GEZ-Y21
