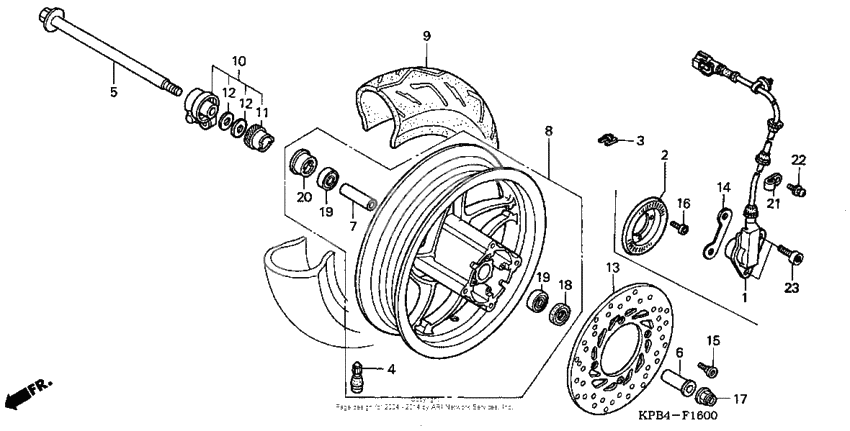

Front wheel
Front wheel
Weight, balance (30) (Ref #3)
3
Part #42706-MCF-D60
Грузик (Ref #3)
3
Part #42705-MCF-D60
Грузик (Ref #3)
3
Part #42704-MCF-D60
Клапан, обод колеса (Ref #4)
4
Part #42753-ML7-003
Axle, fr. wheel (Ref #5)
5
Part #44301-KFG-000
Collar a, fr. axle (Ref #6)
6
Part #44312-KPB-000
Collar, fr (Ref #7)
7
Part #44620-KPB-000
Wheel sub-assy., fr. *nh303m* (Ref #8)
8
Part #44650-KPB-000ZA
Tire, fr. (Ref #9)
9
Part #44711-KPB-643
Box assy (Ref #10)
10
Part #44800-KFG-003
Gear, speedometer (Ref #11)
11
Part #44806-KFG-000
Шайба (Ref #12)
12
Part #44809-170-003
Шайба (Ref #12)
12
Part #44809-170-003
Шайба (Ref #12)
12
Part #44809-170-003
Шайба (Ref #12)
12
Part #44809-170-003
Disk, l. fr. brake (Ref #13)
13
Part #45351-KFG-003
Bolt, disk (8x24) (Ref #15)
15
Part #90105-MV9-003
Bolt, fr. (8x24) (Ref #15)
15
Part #90105-KL8-741
Nut, flange, 12mm (Ref #17)
17
Part #90306-KF0-003
Dust seal (20x32x5) (Ref #18)
18
Part #90754-GC8-005
Bearing (6201u) (Ref #19)
19
Part #91051-KFG-005
Bearing (6201u) (Ref #19)
19
Part #91051-KFG-005
Bearing (6201u) (Ref #19)
19
Part #91051-KFG-005
Bearing (6201u) (Ref #19)
19
Part #91051-KFG-005
Валик (Ref #20)
20
Part #91258-KM1-004
