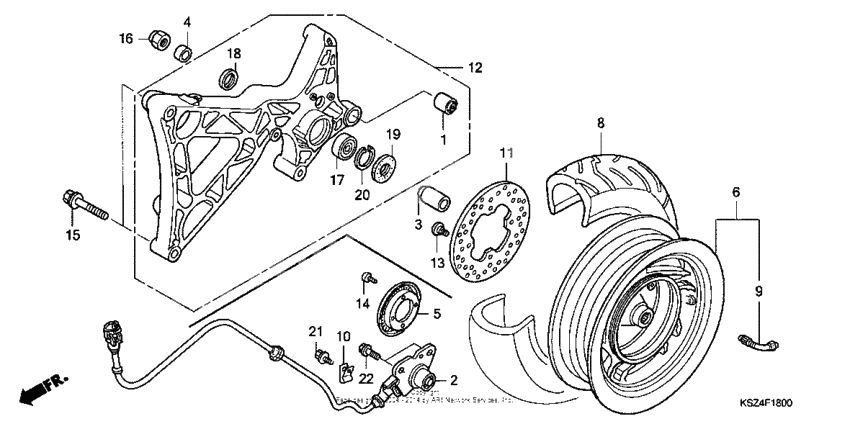

Rear wheel
Rear wheel
Bush, shock absorber (Ref #1)
1
Part #11203-KAB-000
Collar, rr. axle (Ref #3)
3
Part #42311-KFG-J00
Collar b, rr. axle (Ref #4)
4
Part #42312-KM1-000
Wheel sub-assy., rr. *nh303m* (Ref #6)
6
Part #42650-KPB-750ZA
Tire, rr. (Ref #8)
8
Part #42711-KFG-904
Клапан, обод колеса (Ref #9)
9
Part #42753-KJ9-003
Disk, rr. brake (Ref #11)
11
Part #43251-KFK-000
Swingarm assy. (Ref #12)
12
Part #52000-KPB-000
Bolt, disk (8x24) (Ref #13)
13
Part #90105-MV9-003
Bolt, fr. (8x24) (Ref #13)
13
Part #90105-KL8-741
Bolt-washer (10x55) (Ref #15)
15
Part #90132-KPB-000
Nut, u (16mm) (Ref #16)
16
Part #90305-KBN-901
Bearing (6303uu) (Ref #17)
17
Part #91051-KS4-003
Dust seal, 37x25x6 (Ref #18)
18
Part #91258-HB3-003
Валик (Ref #19)
19
Part #91259-KM1-003
Circlip, internal, 47mm (Ref #20)
20
Part #9452047000
