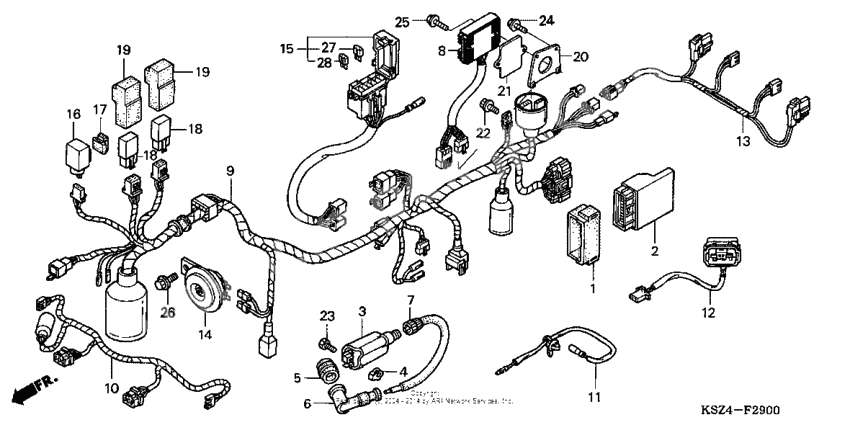

Wire harness
Wire harness
Cushion, spark unit (Ref #1)
1
Part #30405-MBT-610
Module, ign cont (Ref #2)
2
Part #30410-KPB-641
Катушка зажигания (Ref #3)
3
Part #30500-ML7-013
Кольцо/шайба (Ref #4)
4
Part #30520-ML7-000
Валик (Ref #5)
5
Part #30605-KM1-000
Cap assy. (Ref #6)
6
Part #30700-KG8-901
Wire assy., ignition (Ref #7)
7
Part #30731-KFG-000
Rectifier, regulate (Ref #8)
8
Part #31600-KSZ-770
Wire harness (Ref #9)
9
Part #32100-KSZ-771
Sub-wire (Ref #10)
10
Part #32102-KPB-670
Sub-wire (Ref #11)
11
Part #32106-KPB-000
Sub-wire, trunk (Ref #12)
12
Part #32107-KPB-000
Wire, rr. (Ref #13)
13
Part #33708-KPB-000
Horn (Ref #14)
14
Part #38110-KPB-000
Box assy., fuse (Ref #15)
15
Part #38200-KSZ-770
Relay, turn signal (Ref #16)
16
Part #38301-KK9-952
Suspension (Ref #17)
17
Part #38306-GE7-000
Реле стартера (Ref #18)
18
Part #38501-GAM-007
Реле стартера (Ref #18)
18
Part #38501-GAM-007
Реле стартера (Ref #18)
18
Part #38501-GAM-007
Реле стартера (Ref #18)
18
Part #38501-GAM-007
Suspension (Ref #19)
19
Part #38506-MY2-691
Suspension (Ref #19)
19
Part #38506-MY2-691
Suspension (Ref #19)
19
Part #38506-MY2-691
Suspension (Ref #19)
19
Part #38506-MY2-691
Plate, electric (Ref #20)
20
Part #51205-KPB-J10
Cover, regulator (Ref #21)
21
Part #51207-KPB-J10
BOLT (Ref #22)
22
Part #90149-SE0-003
Bolt, hex., 6x20 (Ref #23)
23
Part #92101-06020-4J
BOLT (Ref #24)
24
Part #95701-060-120-0
BOLT (Ref #25)
25
Part #95701-060-200-7
BOLT (Ref #26)
26
Part #95701-080-120-8
Fuse (Ref #27)
27
Part #98200-41000
ПРЕДОХРАНИТЕЛЬ, 15А (Ref #28)
28
Part #98200-41500
