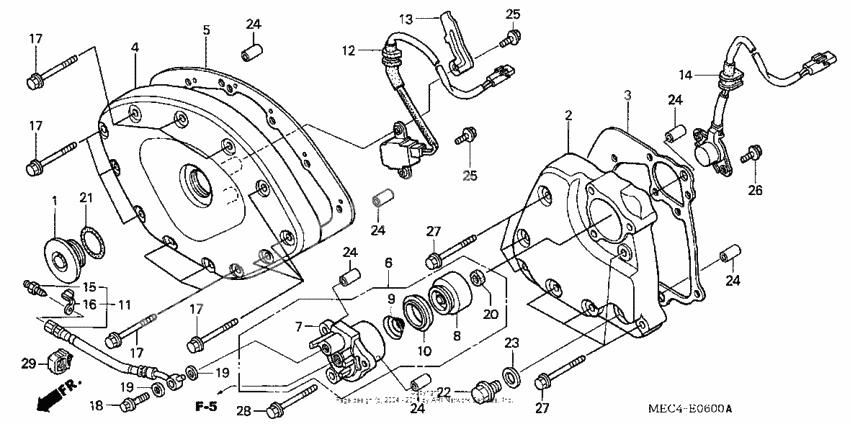

Front cover + transmission cover

Front cover + transmission cover

Front cover + transmission cover
Cap (45mm) (Ref #1)
1
Part #11332-ML7-670
Cover, transmission (Ref #2)
2
Part #11361-MEC-000
ПРОКЛКАДКА (Ref #3)
3
Part #11391-MCA-010
Cover, fr. (Ref #4)
4
Part #11511-MEC-000
Gasket, fr. cover (Ref #5)
5
Part #11524-MCA-000
Cylinder assy. (Ref #6)
6
Part #22860-MEC-010
Cylinder, slave (Ref #7)
7
Part #22861-MEC-000
PISTON (Ref #8)
8
Part #22863-MG9-003
Пружина (Ref #9)
9
Part #22864-MT7-016
Стакан (Ref #10)
10
Part #22865-MG9-003
Hose assy., bleeder (Ref #11)
11
Part #22870-MEC-000
Generator, pulse (Ref #12)
12
Part #30300-MEC-000
Clip, pulser wire (Ref #13)
13
Part #32906-MCA-A00
Переключатель нейтральный (Ref #14)
14
Part #35759-MEC-000
Screw, bleeder (Ref #15)
15
Part #43352-HC5-971
CAP (Ref #16)
16
Part #43353-461-771
Bolt, oil (10x22) (Ref #18)
18
Part #90145-MS9-612
Шайба (Ref #19)
19
Part #90545-300-000
Шайба (Ref #19)
19
Part #90545-300-000
Шайба (Ref #19)
19
Part #90545-300-000
Шайба (Ref #19)
19
Part #90545-300-000
Oil seal (8x18x5) (Ref #20)
20
Part #91209-MB0-003
Прокладка (Ref #21)
21
Part #91301-ML7-003
BOLT (Ref #22)
22
Part #92800-14000
Шайба (Ref #23)
23
Part #94109-14000
BOLT (Ref #25)
25
Part #95701-060-140-8
BOLT (Ref #25)
25
Part #95701-060-140-8
BOLT (Ref #25)
25
Part #95701-060-140-8
BOLT (Ref #25)
25
Part #95701-060-140-8
BOLT (Ref #26)
26
Part #95701-060-160-8
Bolt, flange, 6x35 (Ref #27)
27
Part #95701-0603500
Bolt, flange, 6x35 (Ref #27)
27
Part #95701-0603500
Bolt, flange, 6x35 (Ref #27)
27
Part #95701-0603500
Bolt, flange, 6x35 (Ref #27)
27
Part #95701-0603500
BOLT (Ref #28)
28
Part #95701-060-450-8
CLIP (Ref #29)
29
Part #90650-SB6-003
+ -
